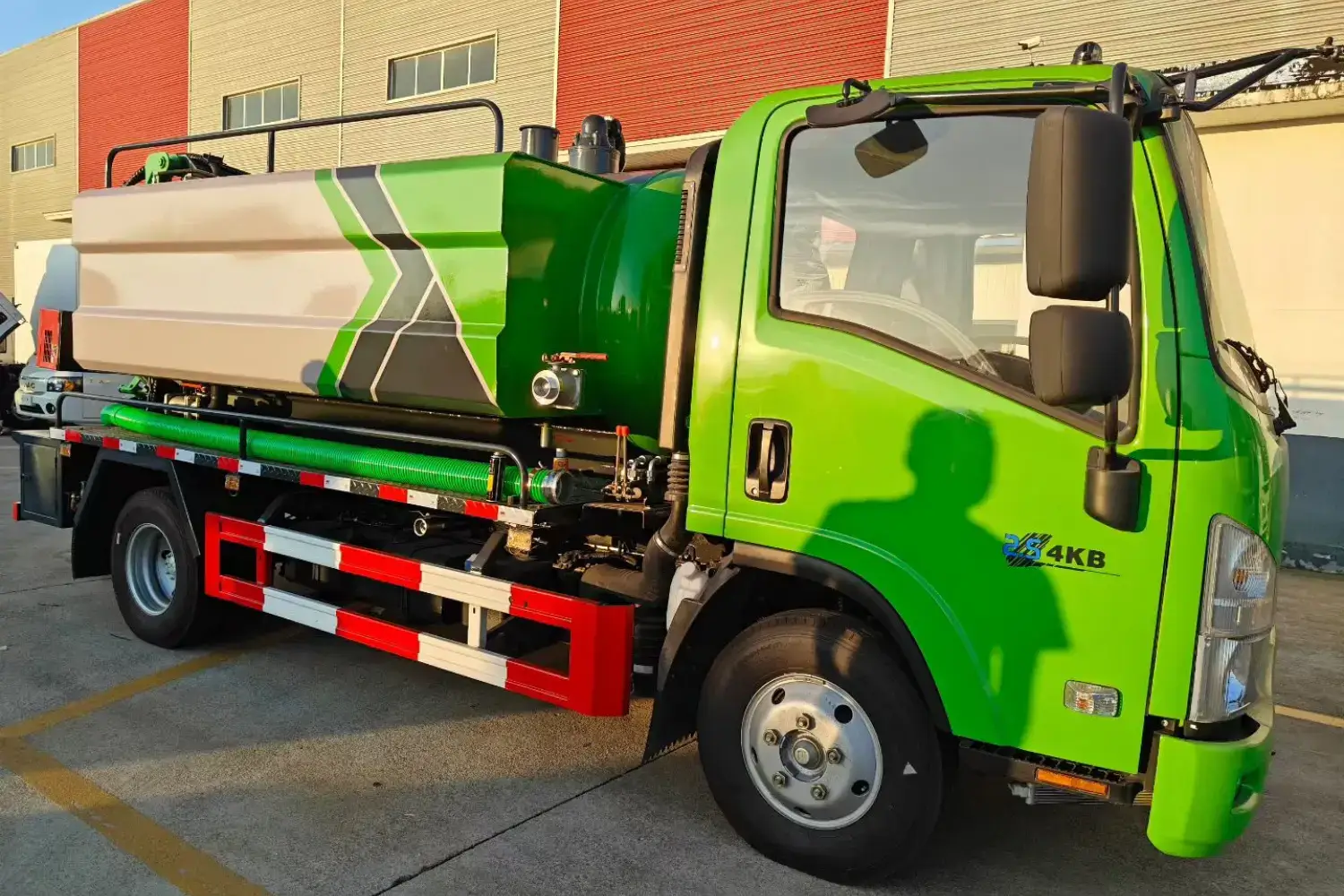

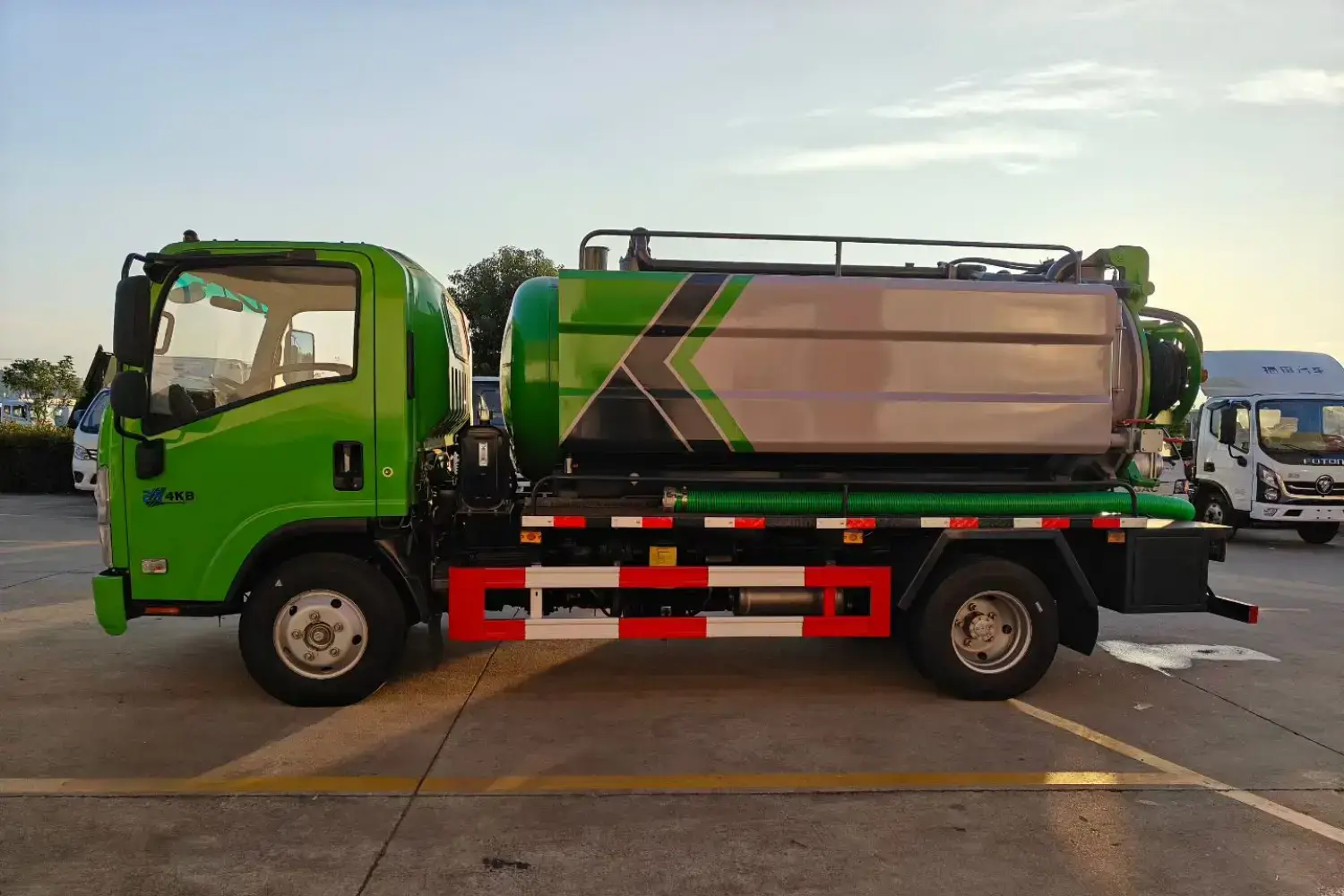

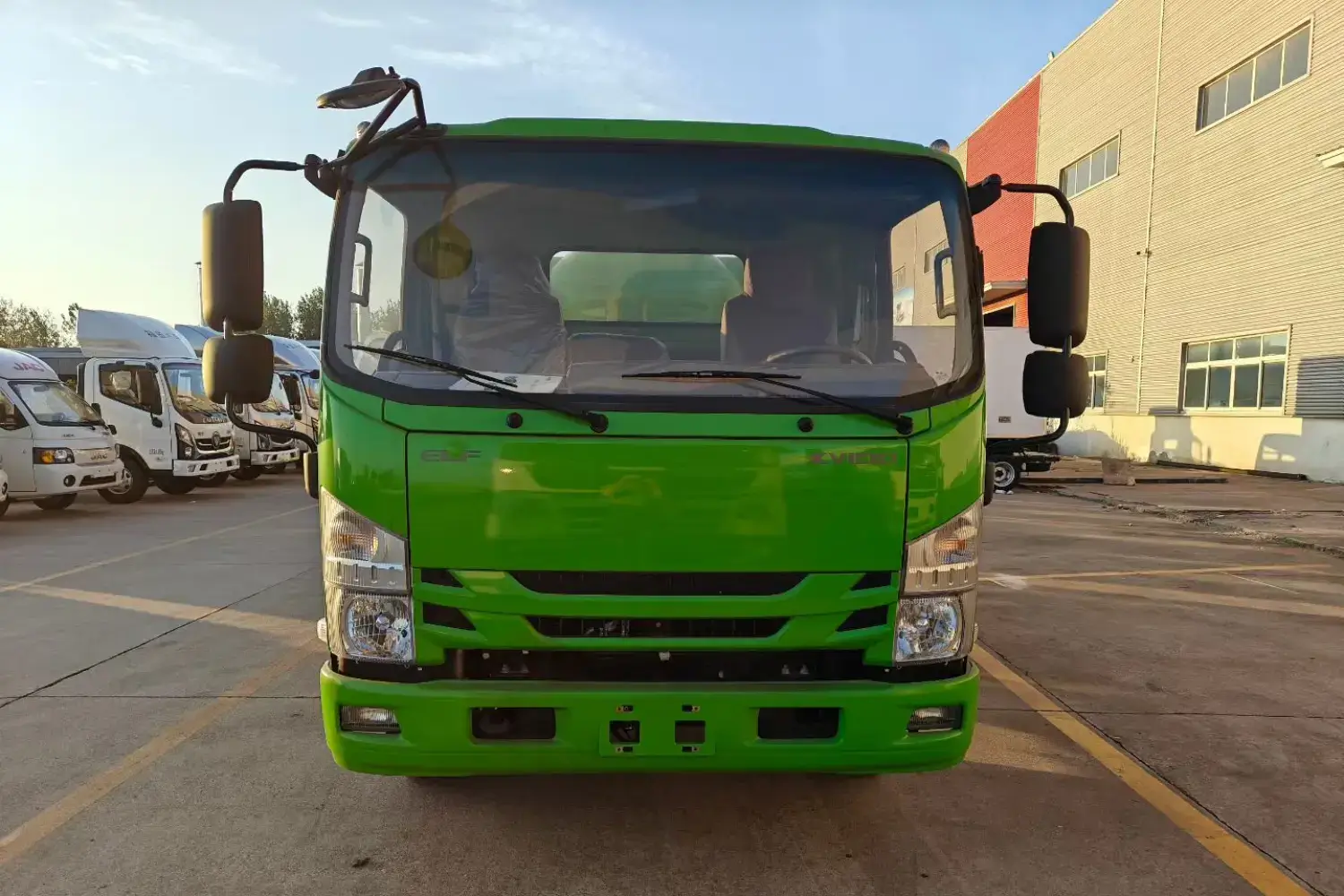

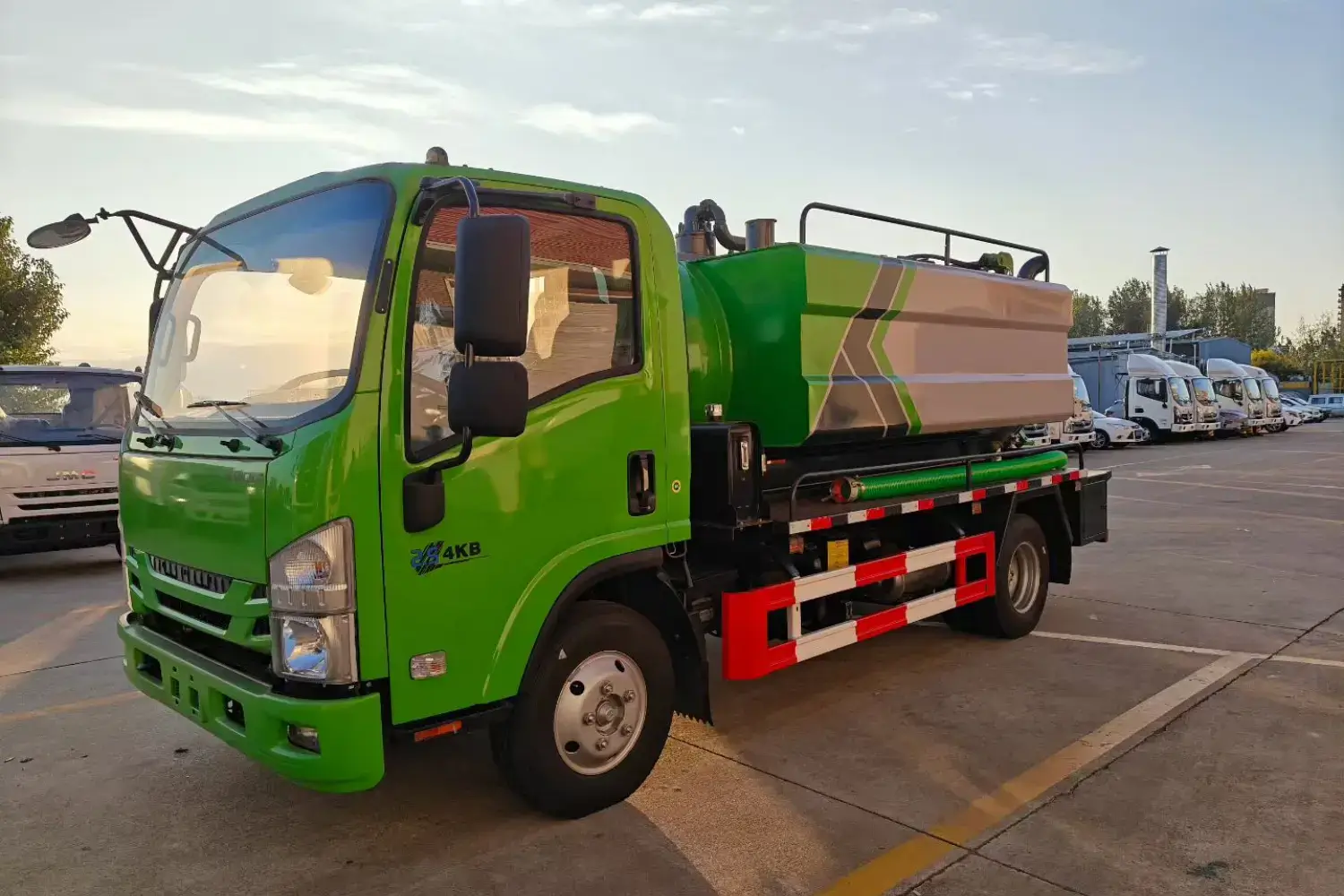

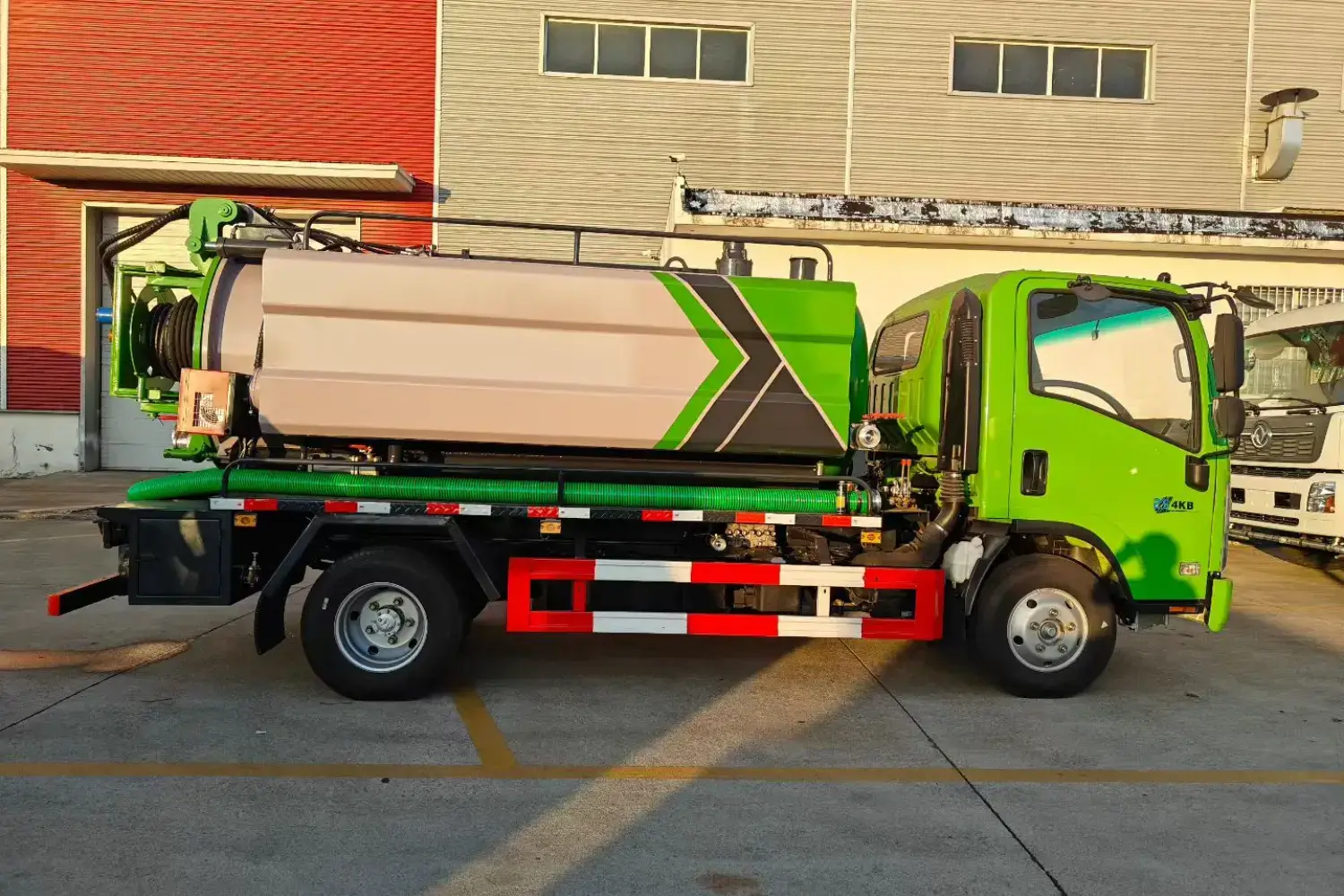

ISUZU 6 Cubic Meter Cleaning And Vacuum Truck

Upper Structure Configuration:
Integrated tank: 4000L sewage tank + 3000L clean water tank with front compartment water tank opening, allowing for water and sewage interchange. High-pressure pump uses a Pinfu 170L pump, equipped with a self-made filter barrel and Y-type filter screen, and 60 meters of 19mm diameter high-pressure hose. Includes a spray nozzle, air-blown water system with 10 small nozzles, fire hydrant water inlets on both sides behind the cab, and a small ball valve for the water circulation pump in the front compartment.

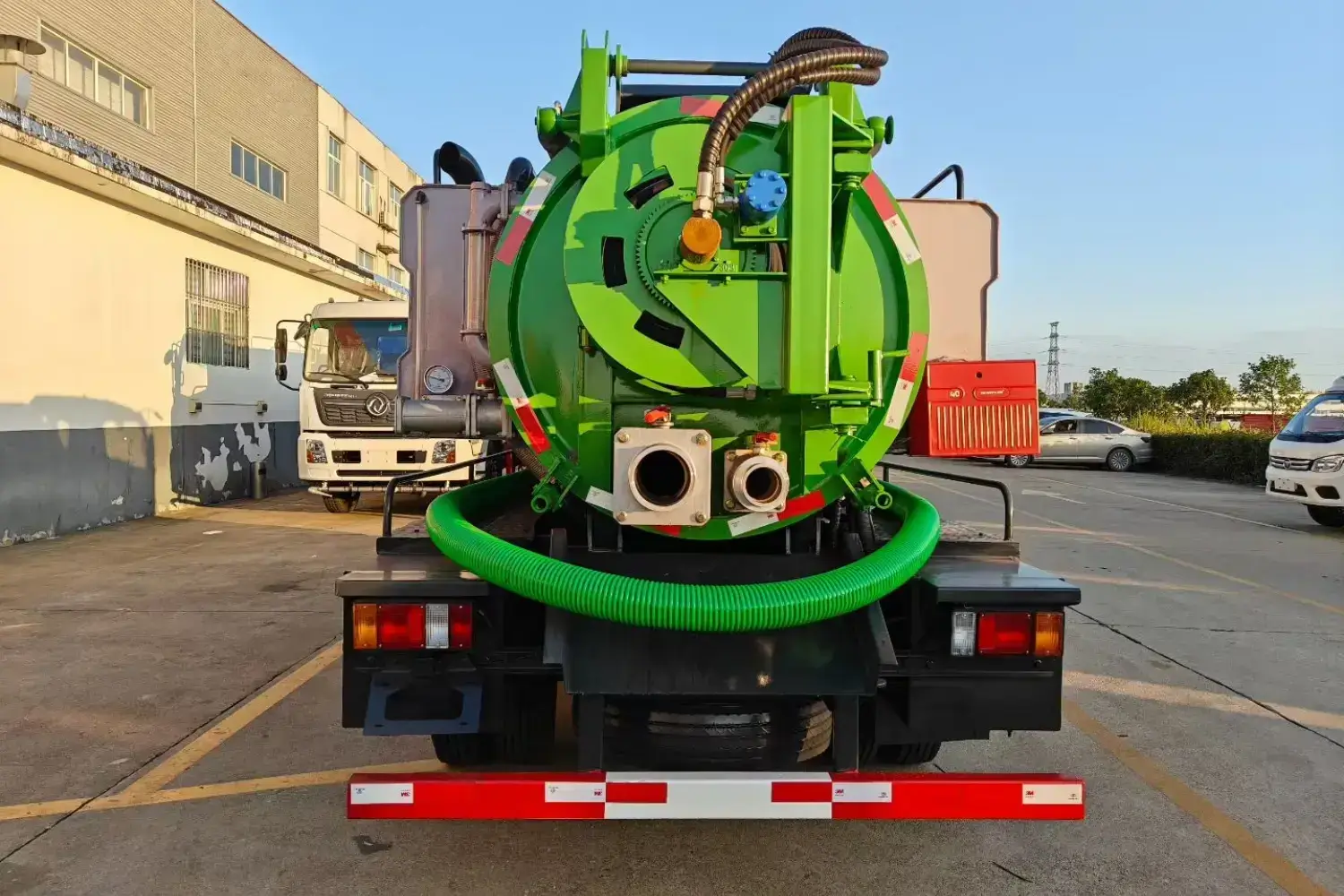

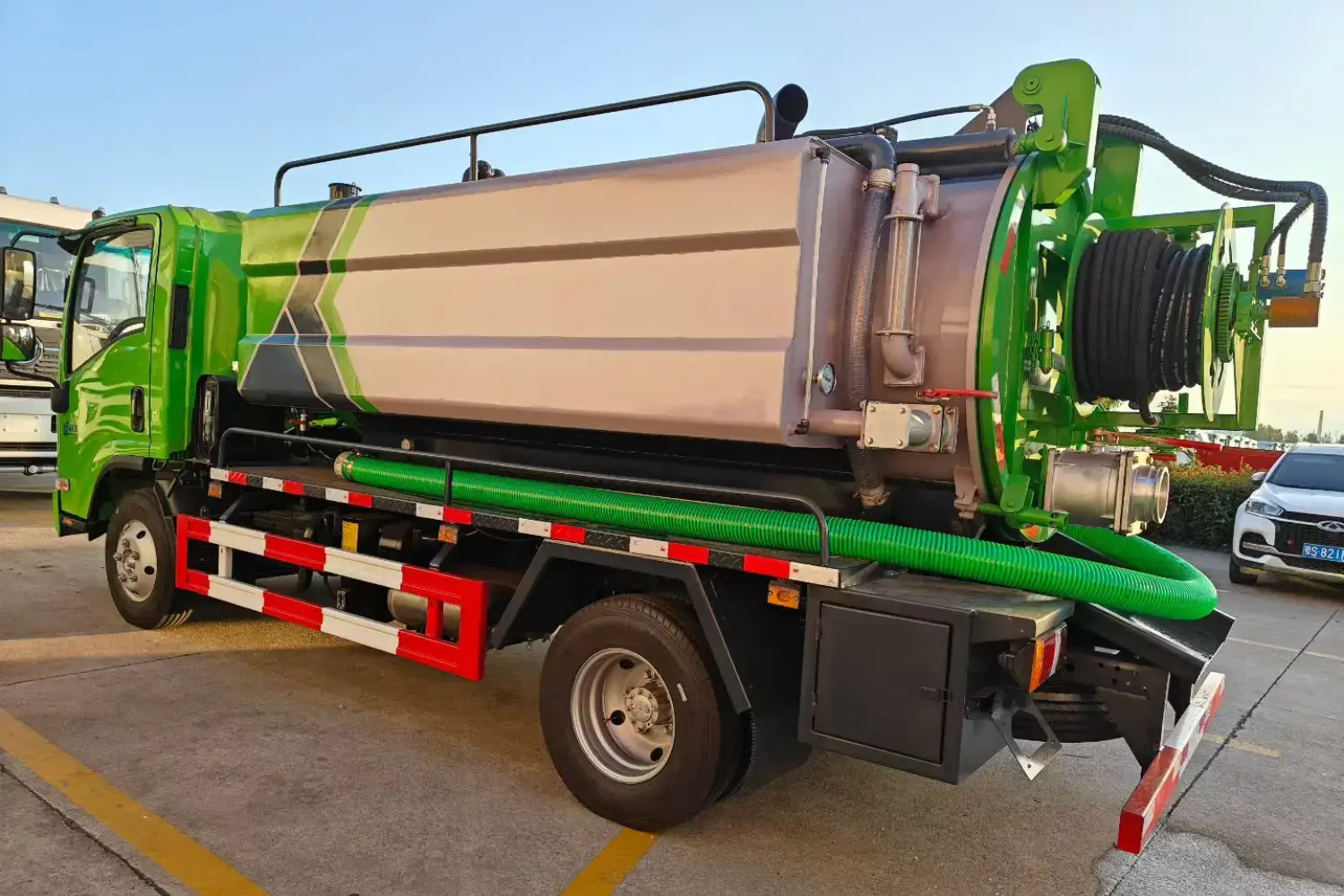

The tank body is reinforced with reinforcing rings. The walkways on both sides for placing the suction pipes and the toolboxes on the left and right sides are made of stainless steel. The overflow valve is appropriately heightened. The tank side has a ladder and a sight glass for monitoring sewage levels. Equipped with one 8-meter suction pipe. The water circulation pump uses an SK-9 pump. The tank end caps are integrally die-cast, the tank body is liftable, and the rear cover is hydraulically opened. The rear of the tank has one DN150 sewage discharge ball valve and one DN100 sewage inlet ball valve. There is a night work light above the rear. The tank has a platform on top. Other features are standard for cleaning and suction trucks.
Chassis Configuration:
Isuzu KV100 chassis configuration parameters: Drive type is 4X2, wheelbase is 3360mm, tire size is 7.00R16, Isuzu 4KH1CN6LB engine with 120 horsepower, Isuzu MSB five-speed gearbox, and rear axle ratio of 5.571.
