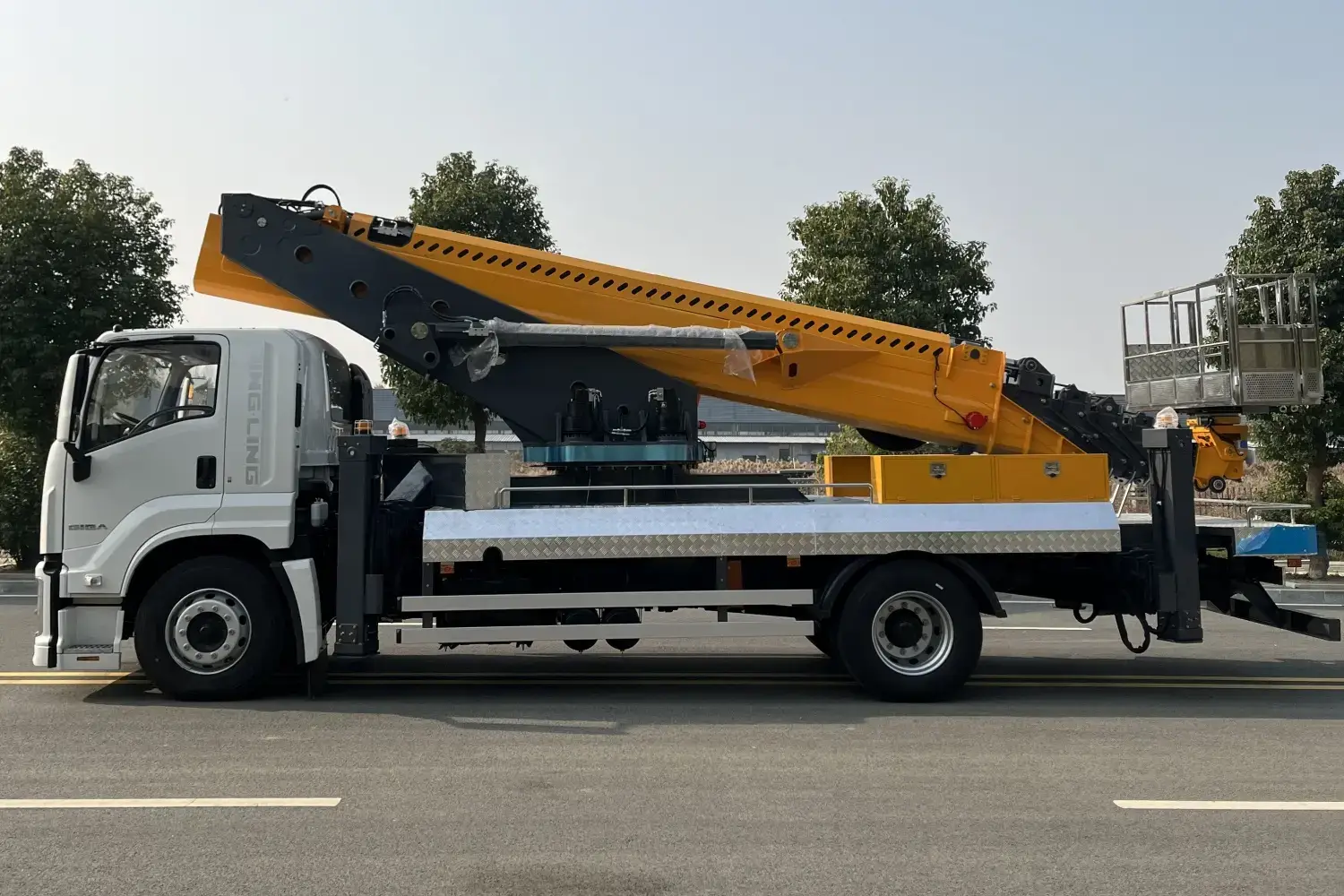

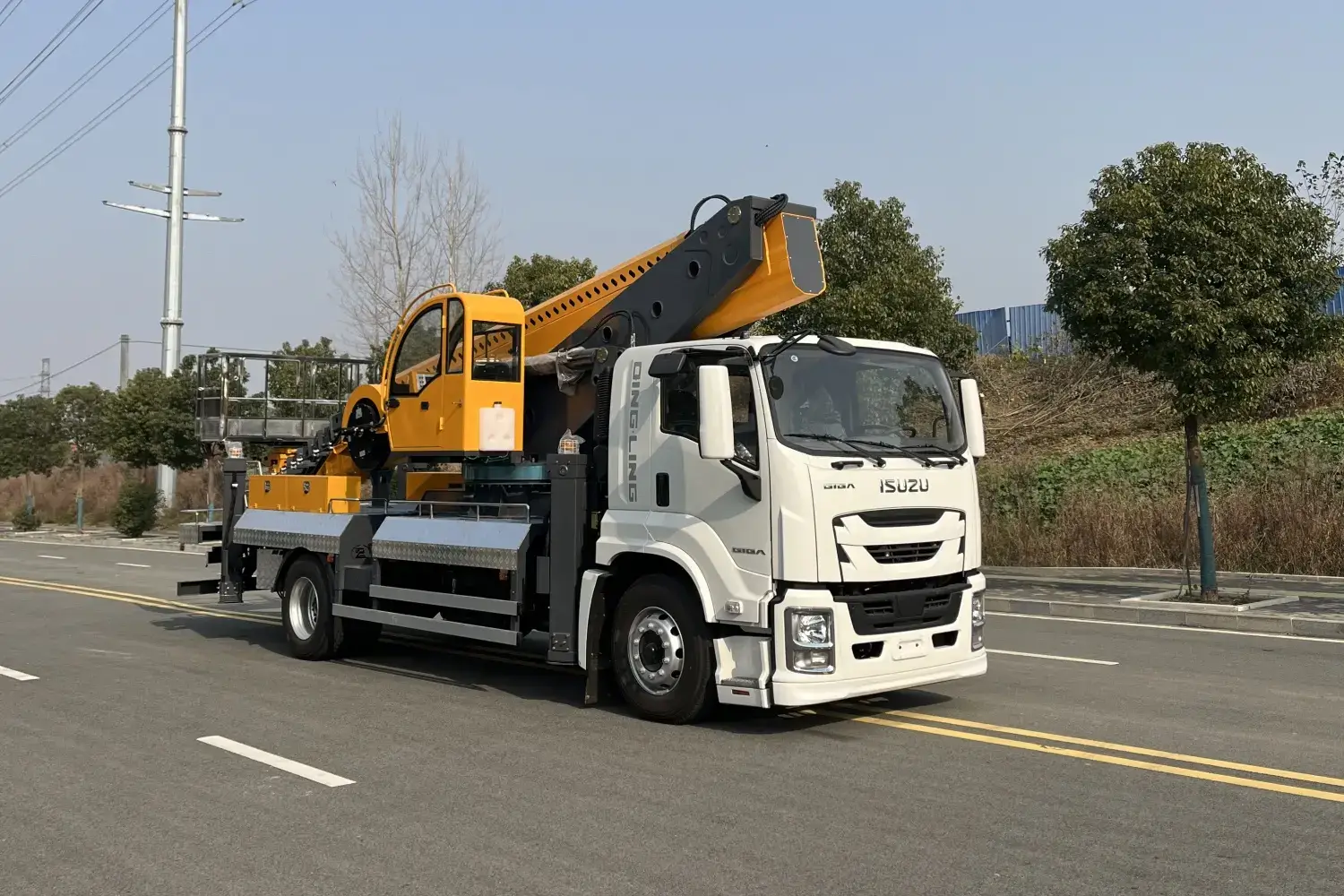

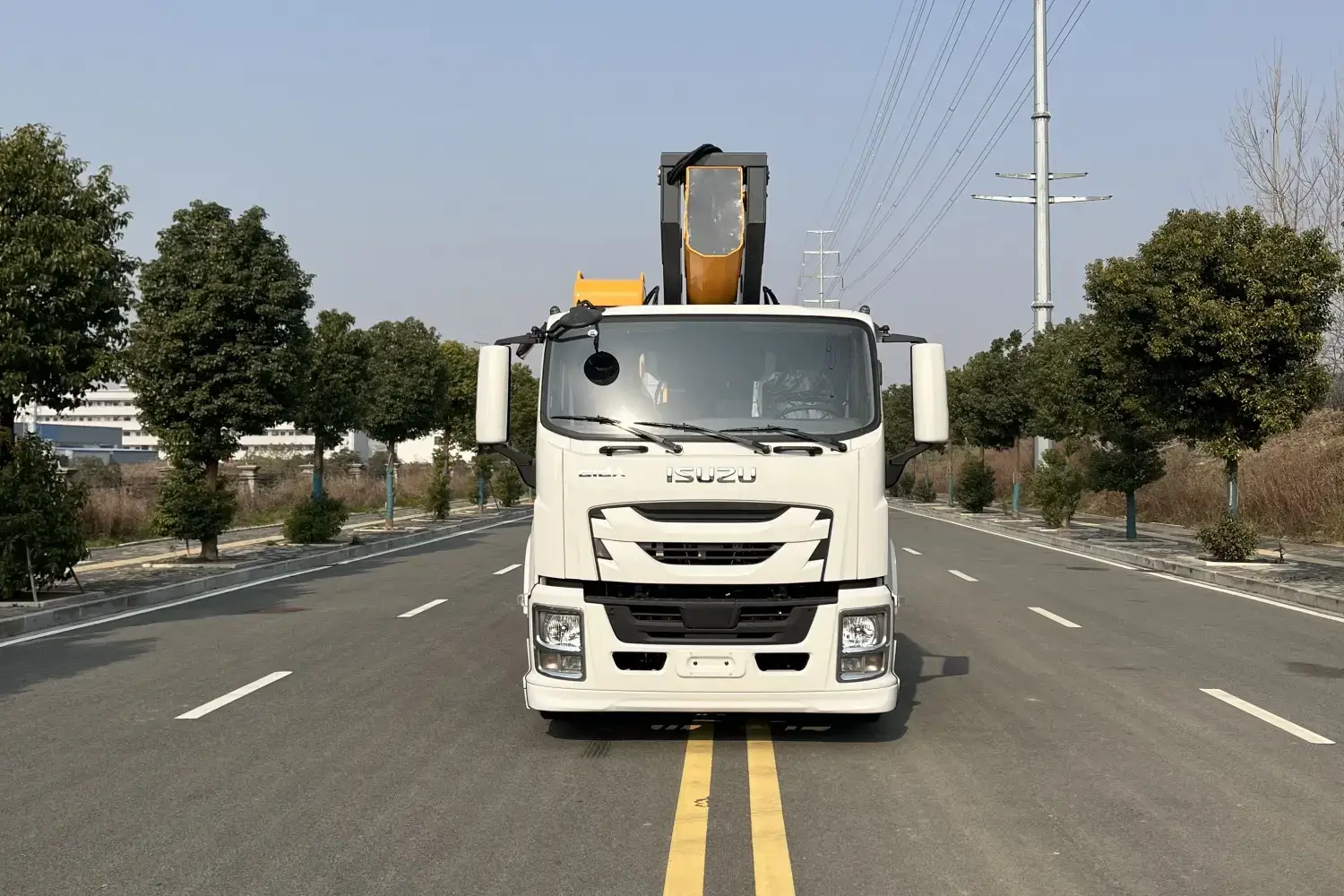

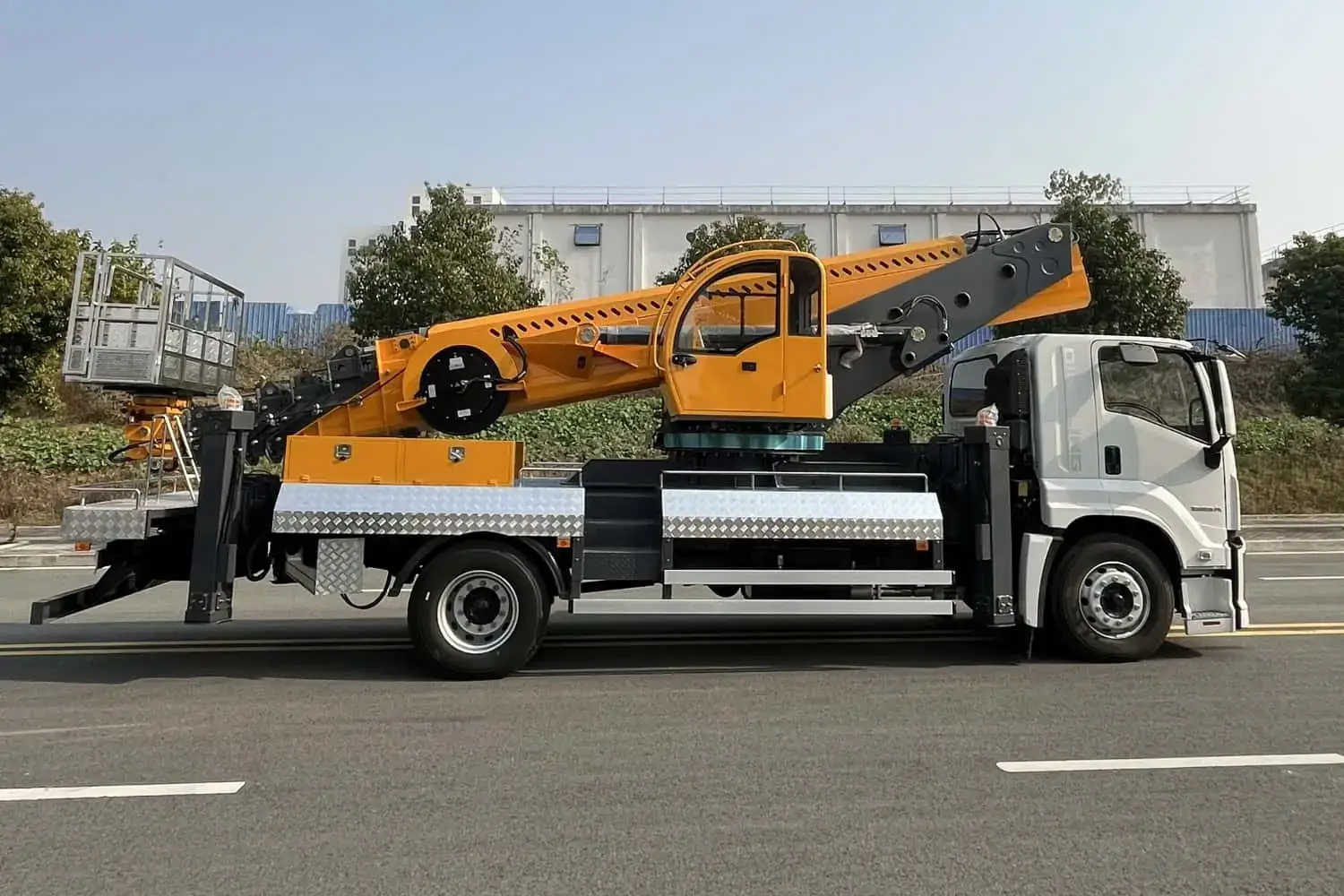

ISUZU 45-meter straight-boom aerial work platform
Isuzu’s straight arm telescopic aerial work platform integrates Isuzu’s excellent chassis technology and advanced aerial work equipment, dedicated to providing efficient, safe, and reliable vertical work solutions for various industries. This series of products has become a trusted partner in the field of high-altitude operations due to its excellent performance, stable quality, and wide applicability.
Key technical parameters
| Main technical parameters of aerial work vehicle | ||||
| Key performance parameters | rated load of work platform | kg | 300 | |
| Maximum operation height ★ | m | 45 | ||
| Maximum working range at maximum working height | m | 5.0 | ||
| ★ Maximum left and right movement range | m | 20 | ||
| Maximum working height at maximum working range | m | 5 | ||
| Leg span ★ | transverse double-leg support | mm | 6200 | |
| Three-section cross-leg | mm | 7800 | ||
| longitudinal span | Mm | Based on the wheelbase | ||
| Air conditioning, ABS, power brakes, electric windows and doors, 7295/80R22.516PR, 5000mm wheelbase, 4HK1-TCG60 engine (151kW/205hp), Class 2 chassis, export model, white color | ||||
Configuration
| Component Name | Brief description |
| Panel and walkway board | Stainless steel fence and anti-slip walkway |
| force taking system | mechanized operation |

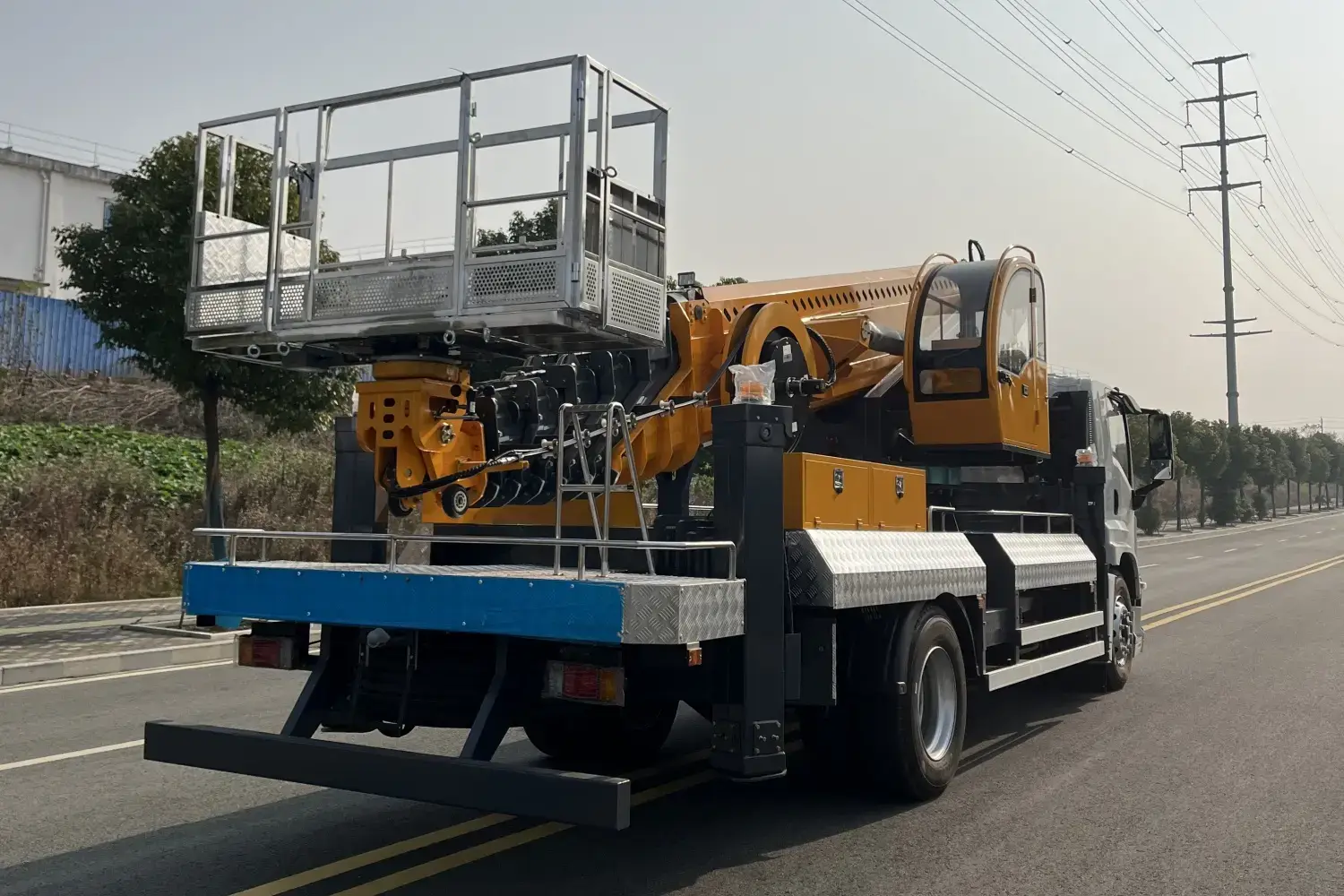

| foot platform | High-strength stainless steel, dimensions: folded basket 1.4 meters, unfolded 2 meters |
| boom form | For wheelbases under 4500mm, an 8-section hexagonal working arm is used; for those above 5000mm, a 7-section hexagonal telescopic arm is employed. |
| rotator | 360-degree continuous rotation |
| landing leg | ★ Adjustable front and rear V (control) |
| operate | ★Work platform and ground remote control electrical operation |
| navar | Realization of stepless speed control by electro-hydraulic proportional control system |
| leveling system | hydraulic leveling |
Basic functions and security settings
| The aerial work platform features a load capacity of 300KG, a maximum working height of 45 meters, and a maximum working range of 20 meters in both directions. | |
| name | Brief description |
| automatic interlocking device for boarding and alighting | ★For interlocking when boarding and alighting to prevent dangerous misoperation |
| manual emergency pump | ★In the event of engine or main pump failure, the emergency system can deploy personnel to the ground and reposition the vehicle for operation. |
| emergency stop device for work platform | ★For emergency stop operations and to limit boom movement |
| vehicle level tester | Capable of detecting the vehicle’s tilt status in both lateral and longitudinal directions |
| night safety warning device | ★The vehicle is equipped with an engineering strobe light and LED lighting. |
| engine ignition and de-ignition | The controller can control the engine ignition and shutdown. |
| nacelle | 360° rotation |
| wind velocity indicator | Automatic wind warning |
| weight barometer | overweight restriction action |
Details

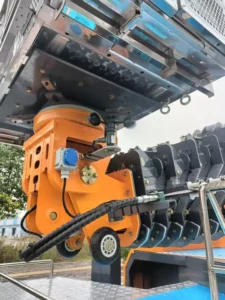

| 1.Enhanced stability of dual-tooth rotation
|
2.Galvanized components: All vehicle parts are electroplated to enhance their rust and corrosion resistance.
|
3.Hydraulic winch: Provides stable hydraulic oil for automatic leveling of aerial work platforms
|
4.Automatic leveling function: Ensures safety with automatic leveling provided by the hoisting basket
|

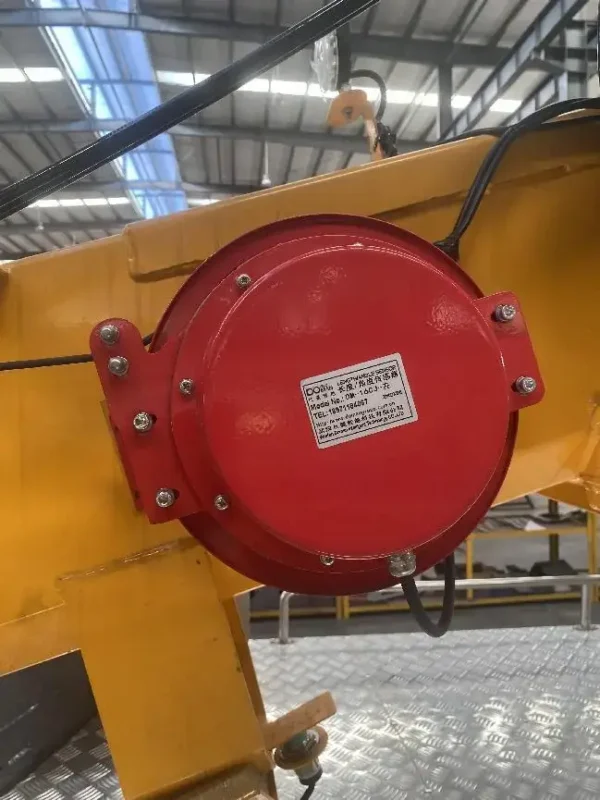

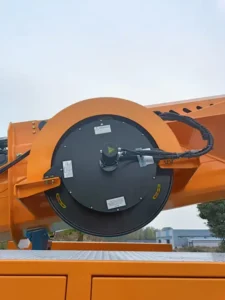

| 5.Cable box: Real-time monitoring of the boom length of aerial work platforms.
|
6.CAN-based electronic control: Real-time display of working height, angle, and range, with restricted working area for safety assurance. It also supports remote operation, making it an indispensable component for high-altitude operations.
|
7. CAN-based electronic control: Real-time display of working height, angle, and range, with restricted working area for safety assurance. It also supports remote operation, making it an indispensable component for high-altitude operations.
|

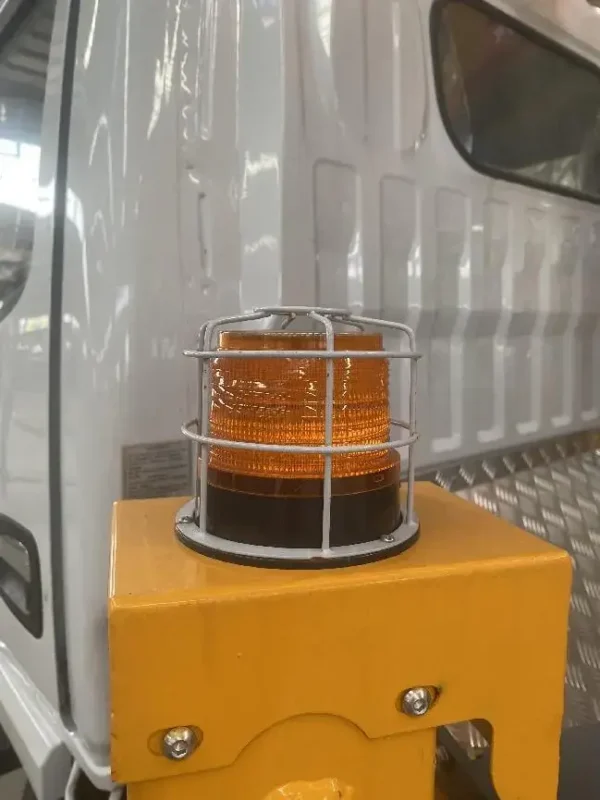

8. Flashing lights: A nighttime warning to alert nearby pedestrians and drivers to avoid construction vehicles.
|

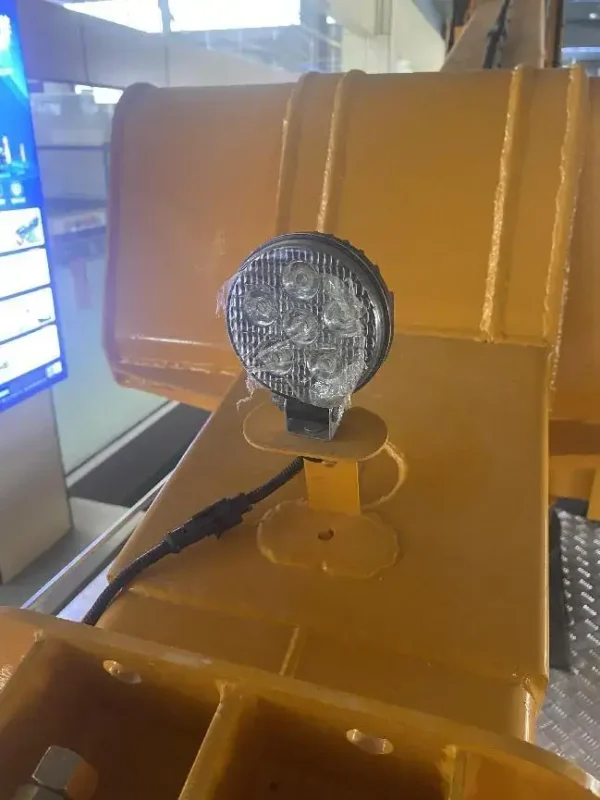

| 9. Lighting fixtures: Provide illumination for nighttime operations.
|

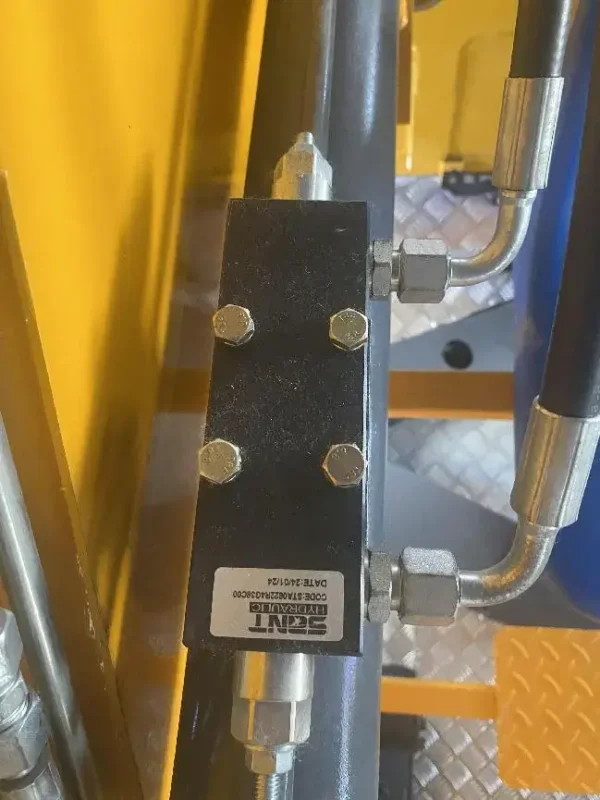

10.Balancing valve: Used to regulate and distribute hydraulic oil flow appropriately, ensuring the normal operation of the hydraulic cylinder.
|

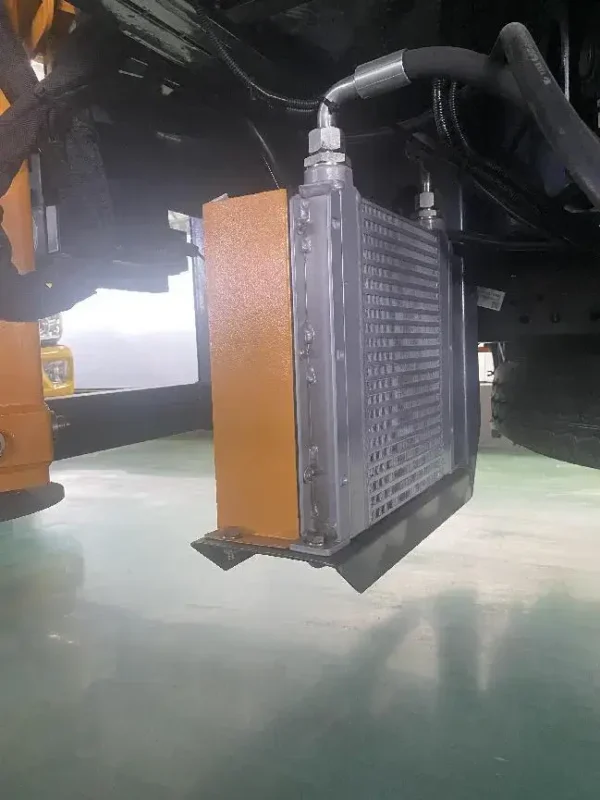

11. Radiator: Dissipates heat from high-temperature hydraulic oil.
|
