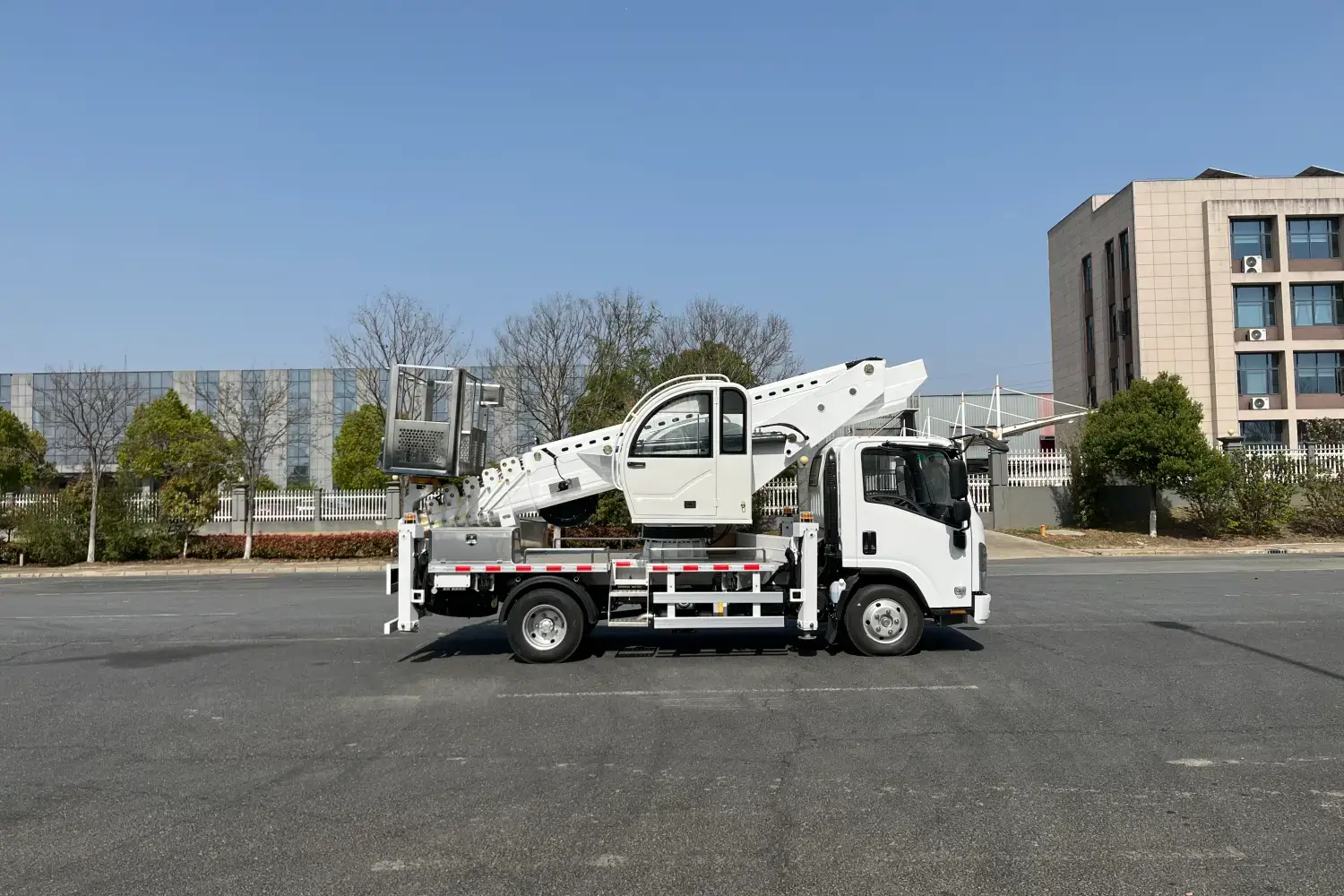

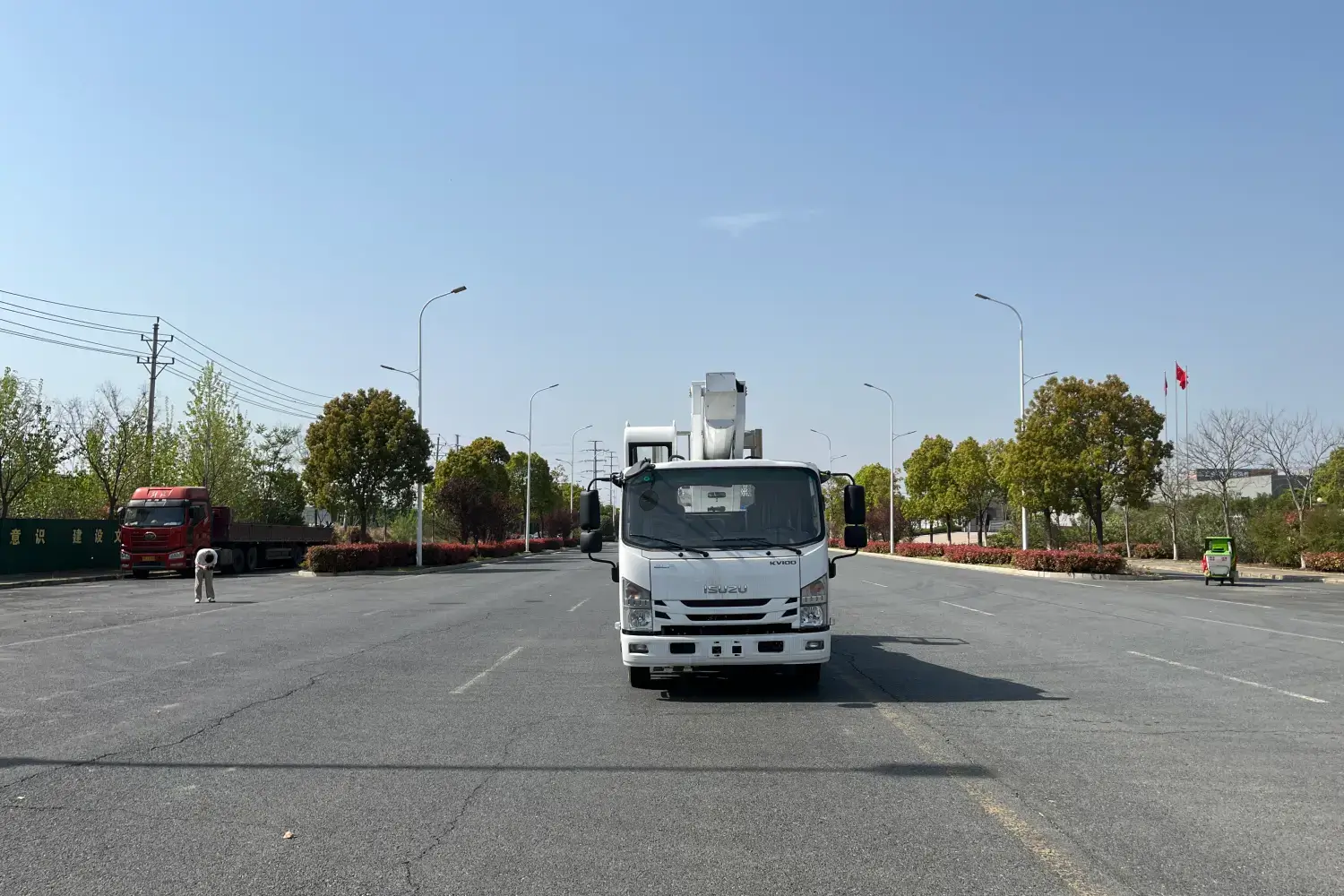

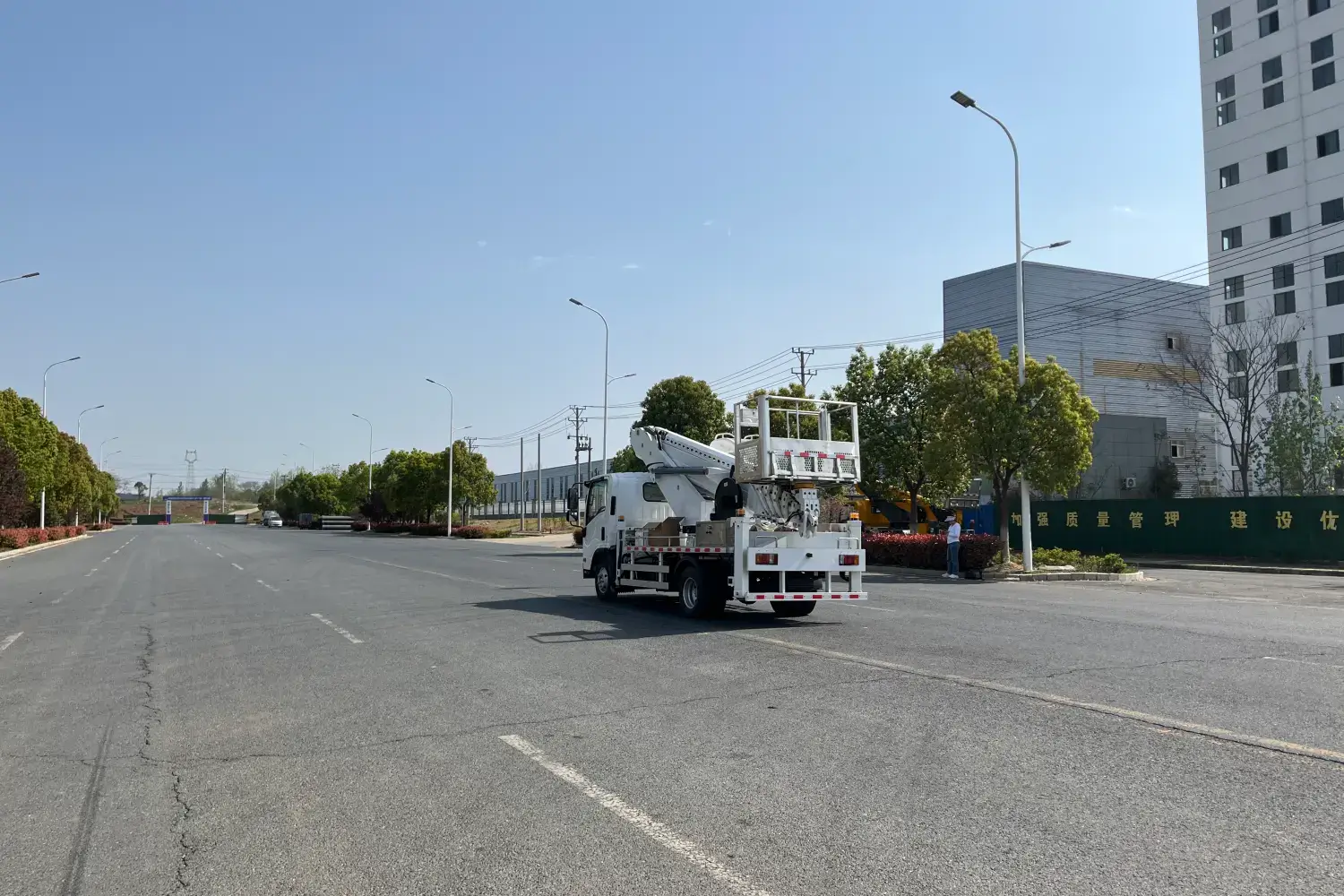

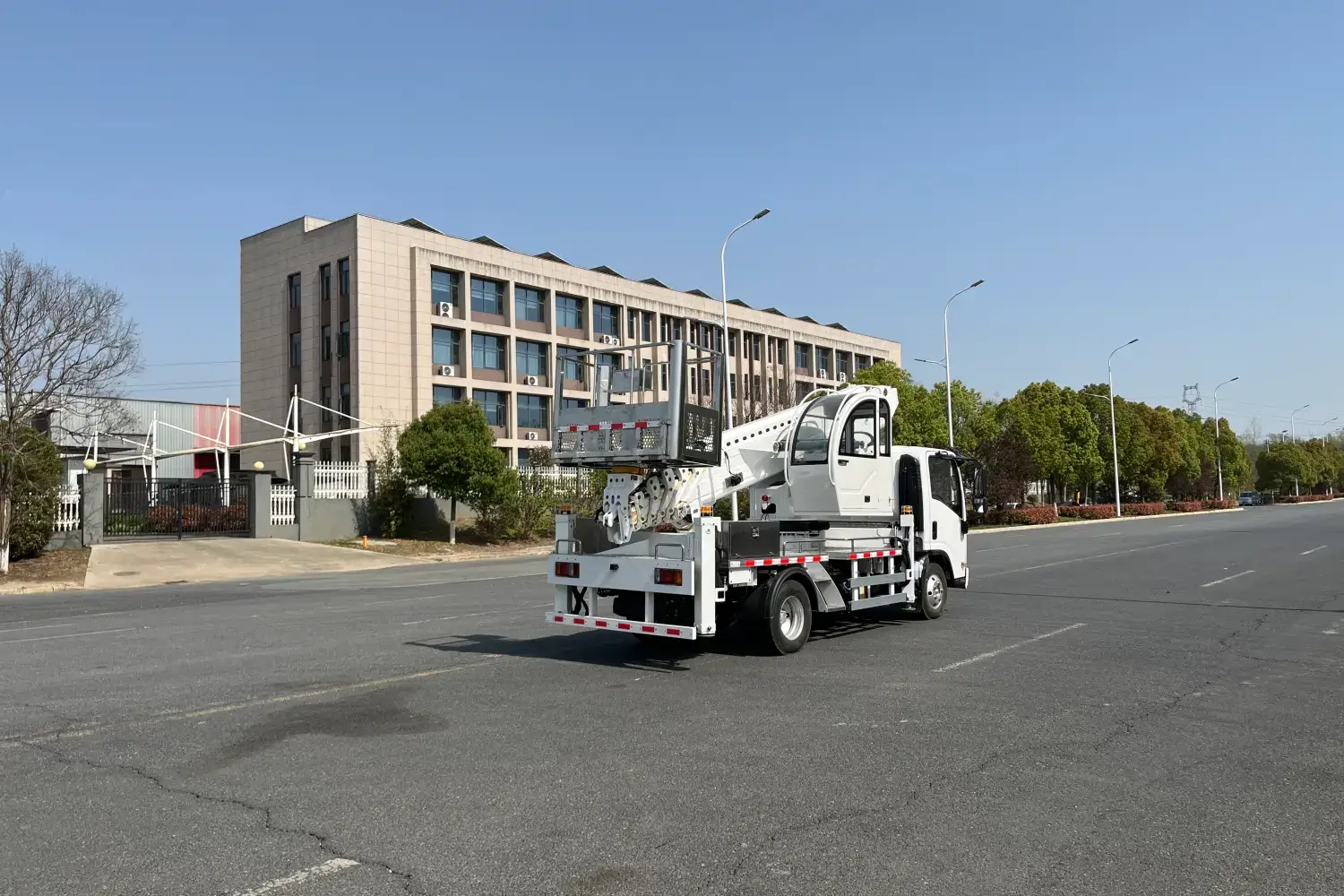

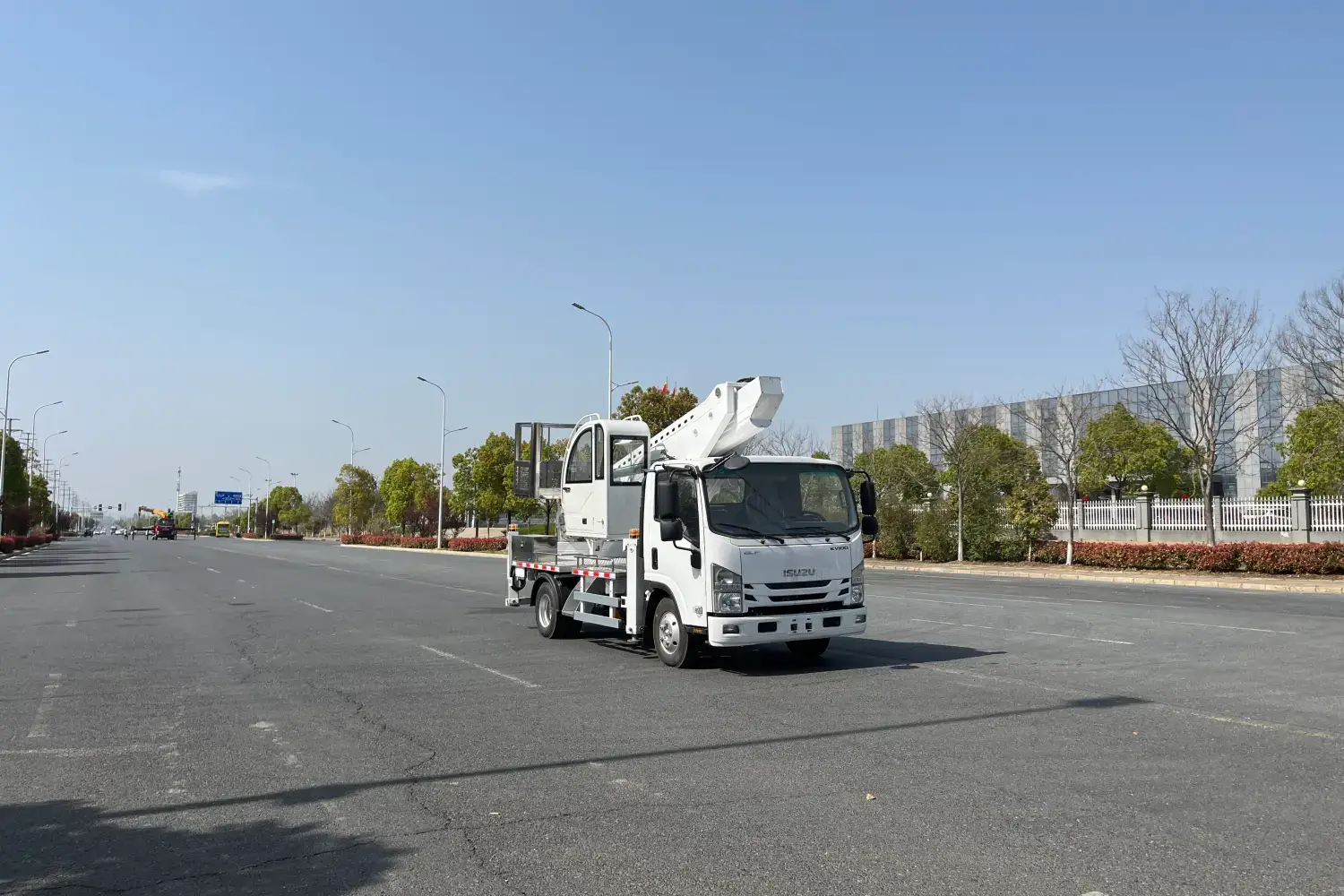

ISUZU KV100 32 meter straight arm telescopic aerial work platform
Isuzu’s straight arm telescopic aerial work platform integrates Isuzu’s excellent chassis technology and advanced aerial work equipment, dedicated to providing efficient, safe, and reliable vertical work solutions for various industries. This series of products has become a trusted partner in the field of high-altitude operations due to its excellent performance, stable quality, and wide applicability.
Main technical parameters
| Main technical parameters of aerial work platform | ||||
| category | project | unit | data | |
| Main performance parameters | Rated load of work platform | kg | 200 | |
| Maximum working height ★ | m | 32 | ||
| ★ Working radius at maximum working height | m | 5.0 | ||
| ★ Maximum working range on the left and right | m | 18 | ||
| Working height at maximum working radius ★ | m | 5 | ||
| Outrigger stride ★ | Horizontal | mm | 6000 | |
| Vertical | mm | 6000 | ||
| Engine: China VI KV100 wide-body cab; Chassis model: QL1073BUHAY; Wheelbase: 3360mm; Air brake; Isuzu 4KB1-TCG60 130hp engine; Isuzu 5-speed gearbox; 7.00R16 tires; Air conditioning; Power steering; Central locking; Power windows; 2.5-ton front axle; 4.8-ton rear axle. | ||||
Configuration instructions
| Component Name | Brief description |
| chassis | Isuzu |
| engine | 130 horsepower |
| driver’s cab | Single row seat, can seat 3 people |
| Steering assist | Power steering |
| Temperature regulation | Air conditioning |
| Enclosure panels and walkway panels | Stainless steel railings and non-slip walkways , all with aluminum alloy edging. |
| Power Take-Off System | Mechanical operation |
| Work platform | High-strength stainless steel dimensions: 1600 x 700 x 1150 |
| boom type | ★ Seven- section, sixteen – sided boom with six sections for synchronous telescopic extension |
| Rotary device | 360 -degree continuous rotation , 21-inch super large swivel. |
| outrigger | ★ Front V- shape and rear V- shape, individually adjustable (controllable) |
| operate | ★ Operation of electrical appliances on the work platform and ground remote control |
| control system | Electro-hydraulic proportional control system to achieve stepless speed regulation |
| Leveling system | Hydraulic automatic leveling |
Basic functions and security configuration
| Basic safety features of the aerial work platform vehicle: The vehicle can achieve a platform load of 250KG , a maximum working height of 32 meters, and a maximum working radius of 18 meters to the left and right . | |
| name | Brief description |
| Automatic interlock device for getting on and off the vehicle | ★ Used for interlocking when getting on and off the vehicle to prevent accidents caused by misoperation. |
| Electric emergency pump | ★ In the event of engine or main pump failure, personnel can be transported back to the ground via the emergency system. |
| Emergency stop device for work platform | ★ Used for emergency stop operations and to restrict boom operation |
| Vehicle leveling instrument | It can detect the tilt status of the entire vehicle in both lateral and longitudinal directions. |
| Nighttime safety warning devices | ★ The vehicle is equipped with engineering strobe lights and LED headlights . |
| Engine ignition and shutdown | ★ The controller can control the engine’s ignition and shutdown. |
| hanging basket | 360° rotation |
Key performance characteristics and advantages:
- The maximum operating height is 32 meters ( 23 meters, 25 meters, and 27 meters are also available).
- – large work platform can bear 200KG (carrying up to 3 people) and can rotate 360 ° ; ★
- All steel structural components of the vehicle are made of high-strength materials, which are lightweight, high-strength, tough, and highly reliable.
- front and rear V – shaped design, offer excellent stability and are equipped with a ” outrigger slippage ” protection function ( anti -tipping warning ) . They can be operated simultaneously or individually to adapt to various working conditions. ★
- The suspended platform is made of high-strength stainless steel , making it less prone to damage and corrosion. Its lightweight design allows for greater load-bearing capacity. ★
- The hexagonal boom arm features synchronous telescopic movement, a compact structure, high operating efficiency, and a large working range. It incorporates a built-in telescopic cylinder and a double-chain telescopic mechanism, making it easier to observe fault points and facilitating maintenance. ★
- The vehicle’s electrical system utilizes a CAN bus control system, resulting in neat and simple wiring. The vehicle has three operating points: wireless remote control , manual lever operation, and manual emergency pump operation. It is safe, reliable, and highly efficient. ★
