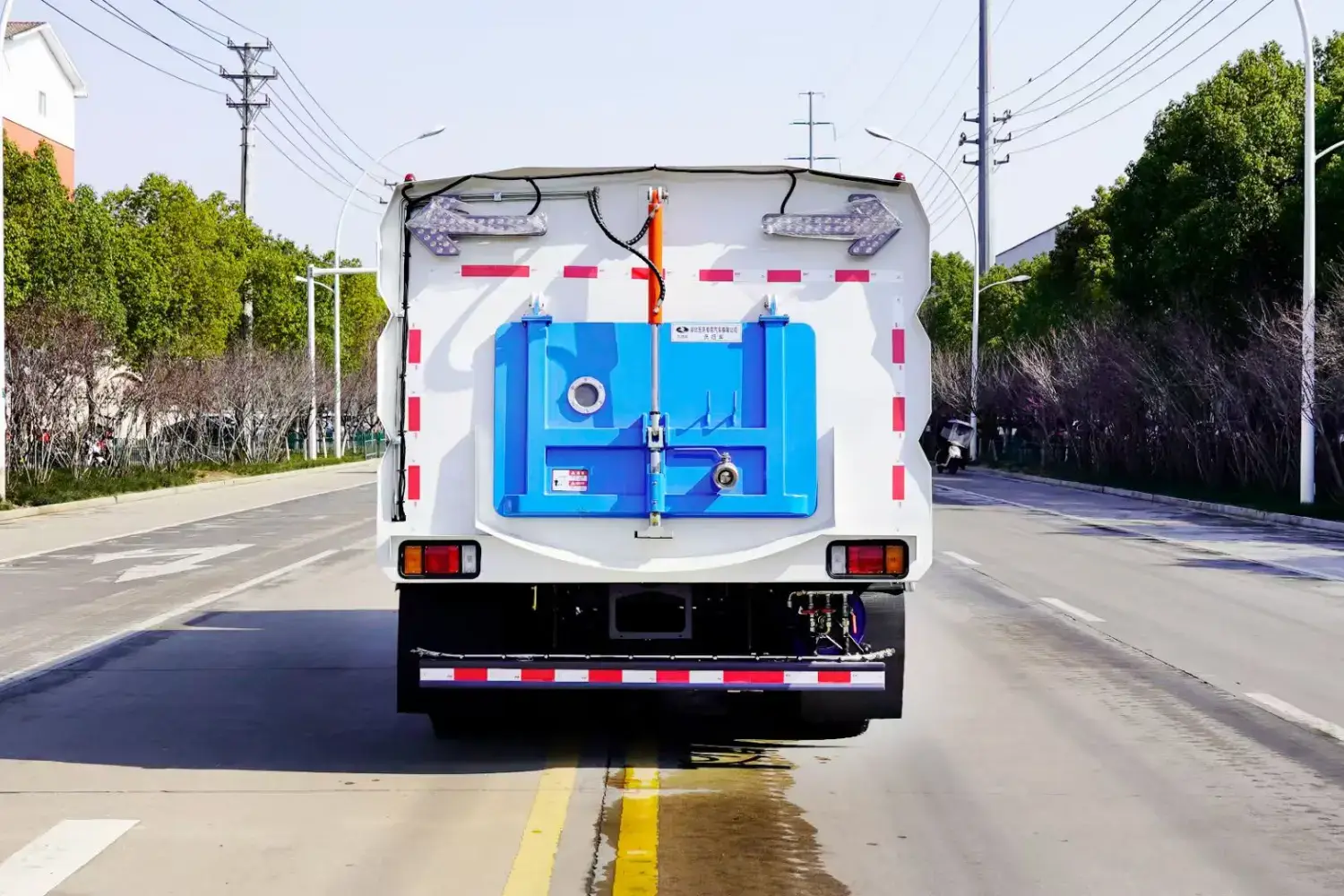

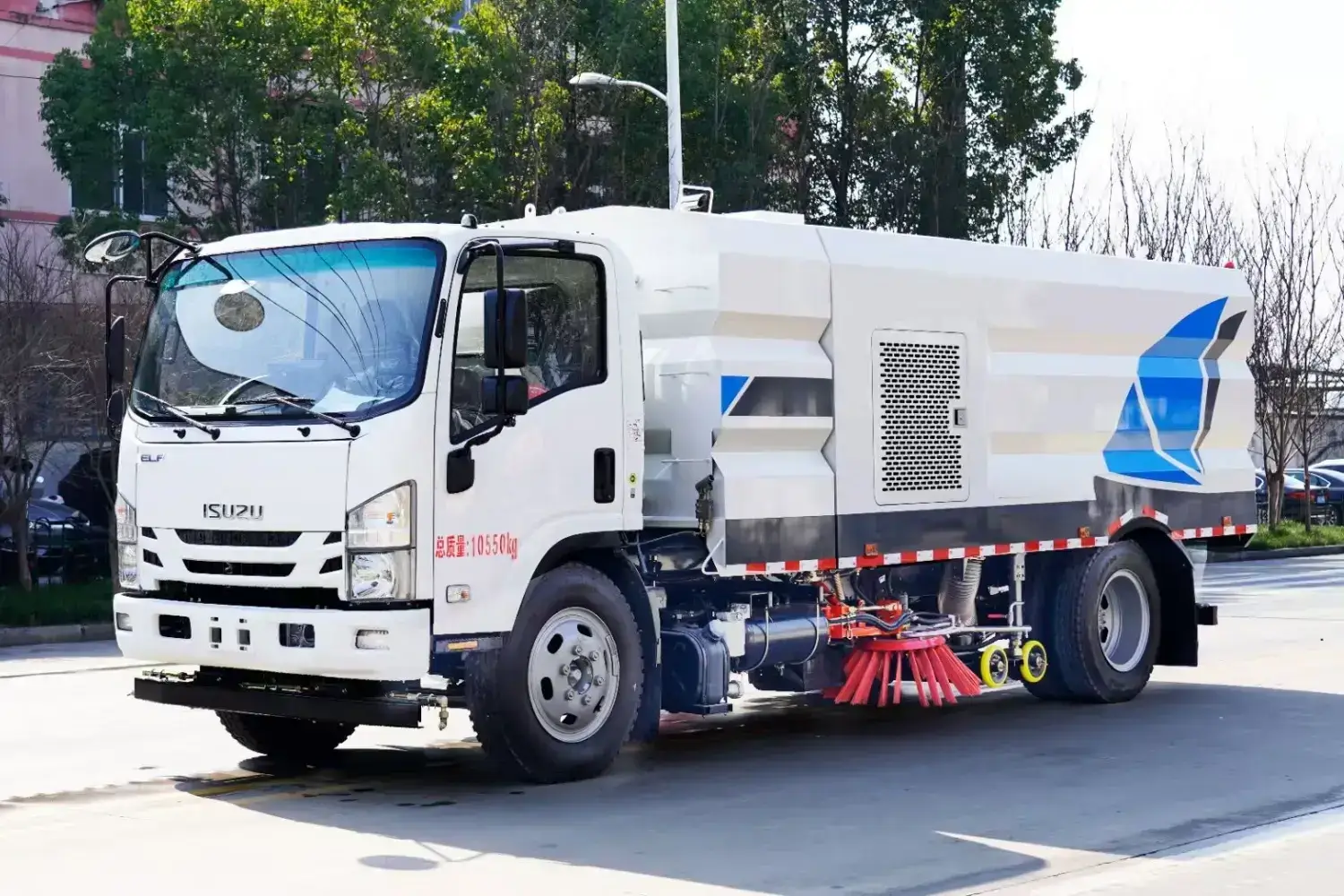

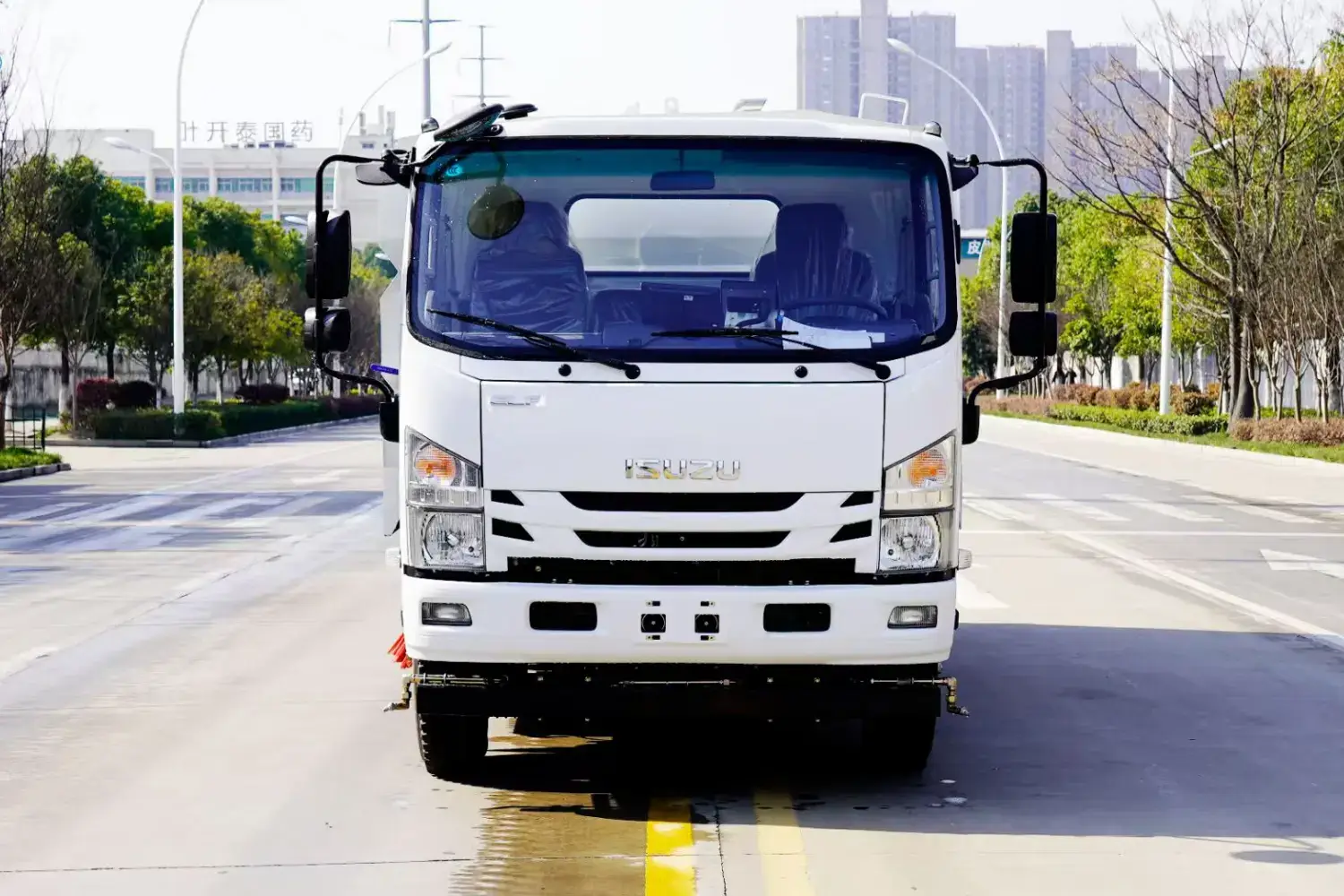

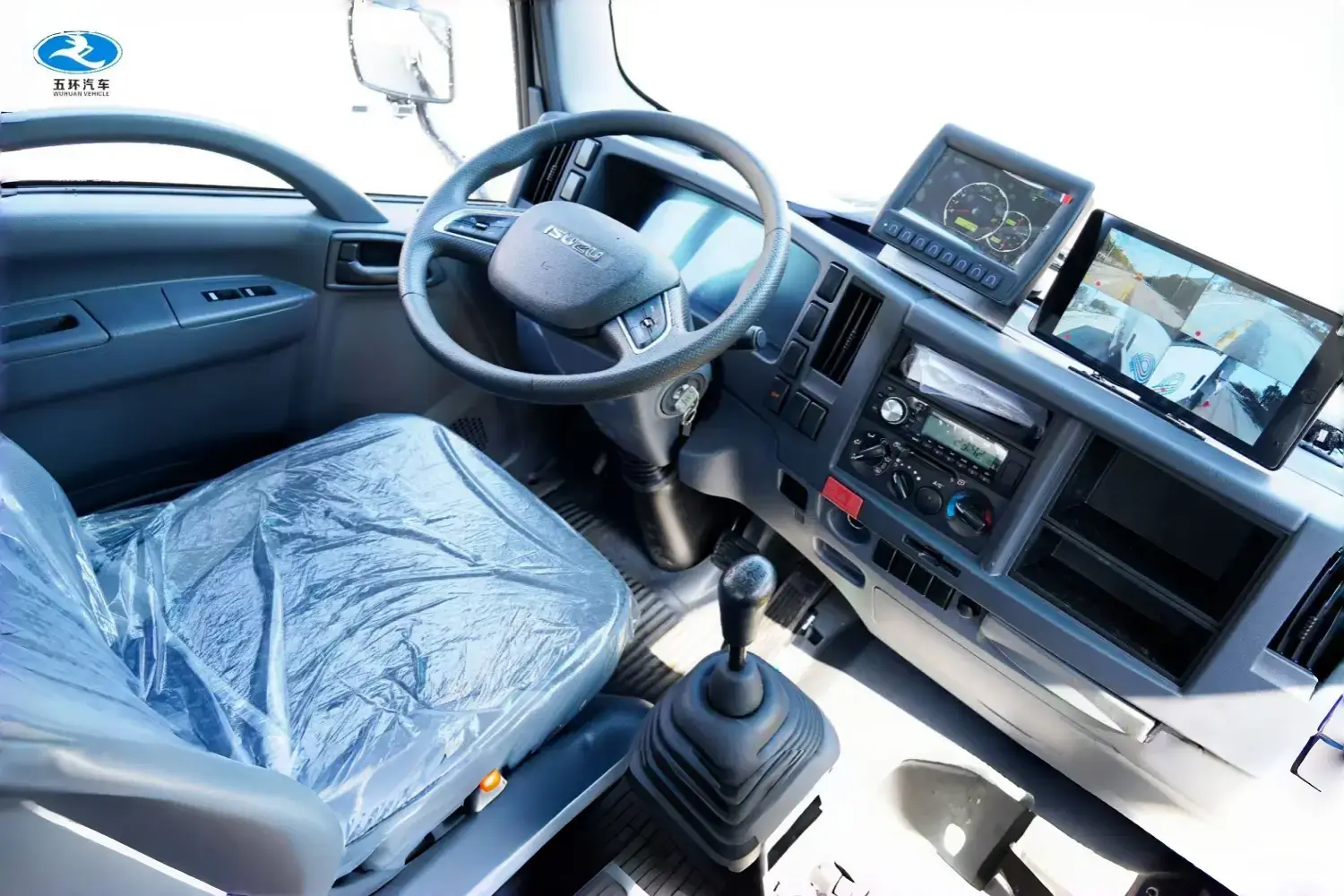

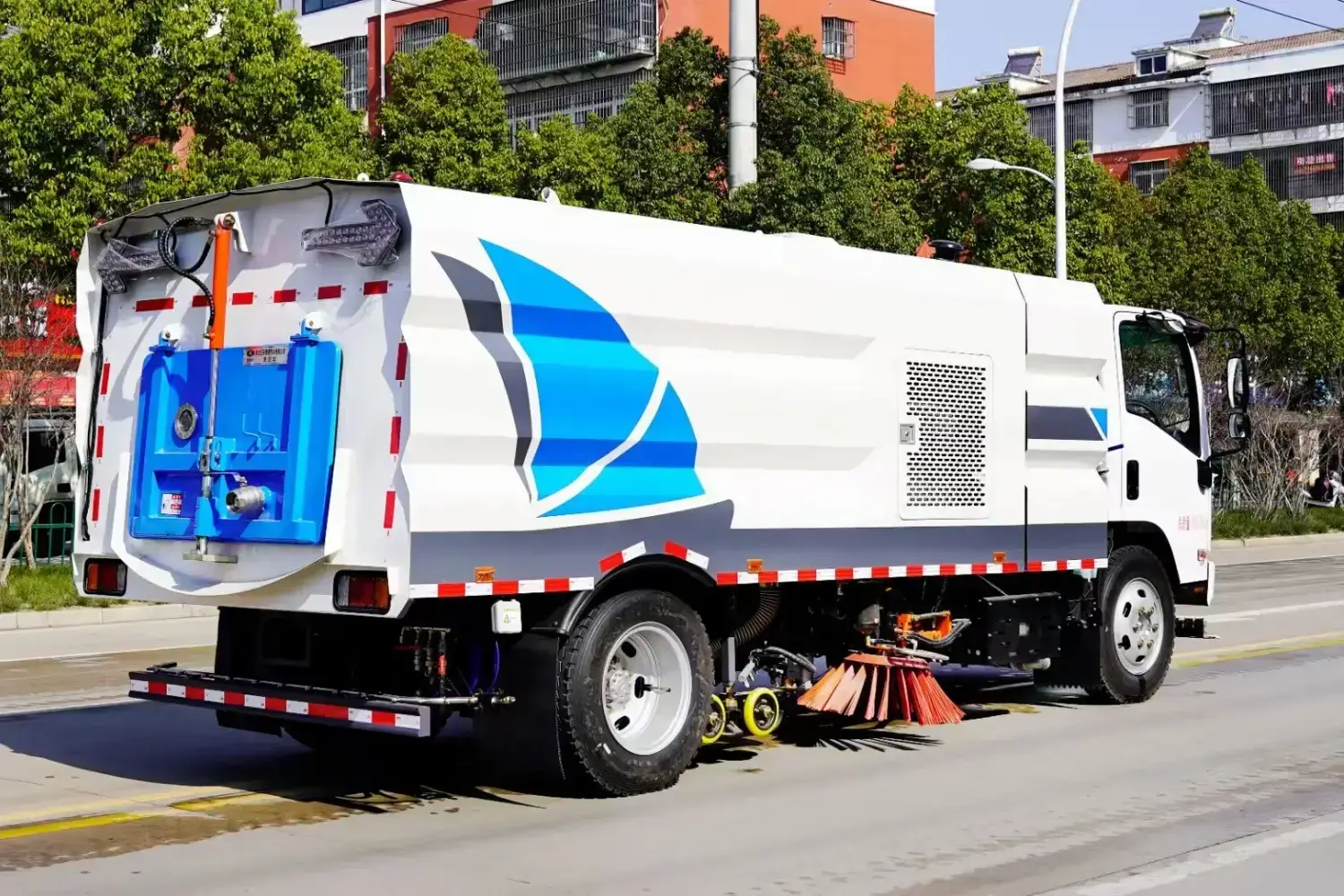

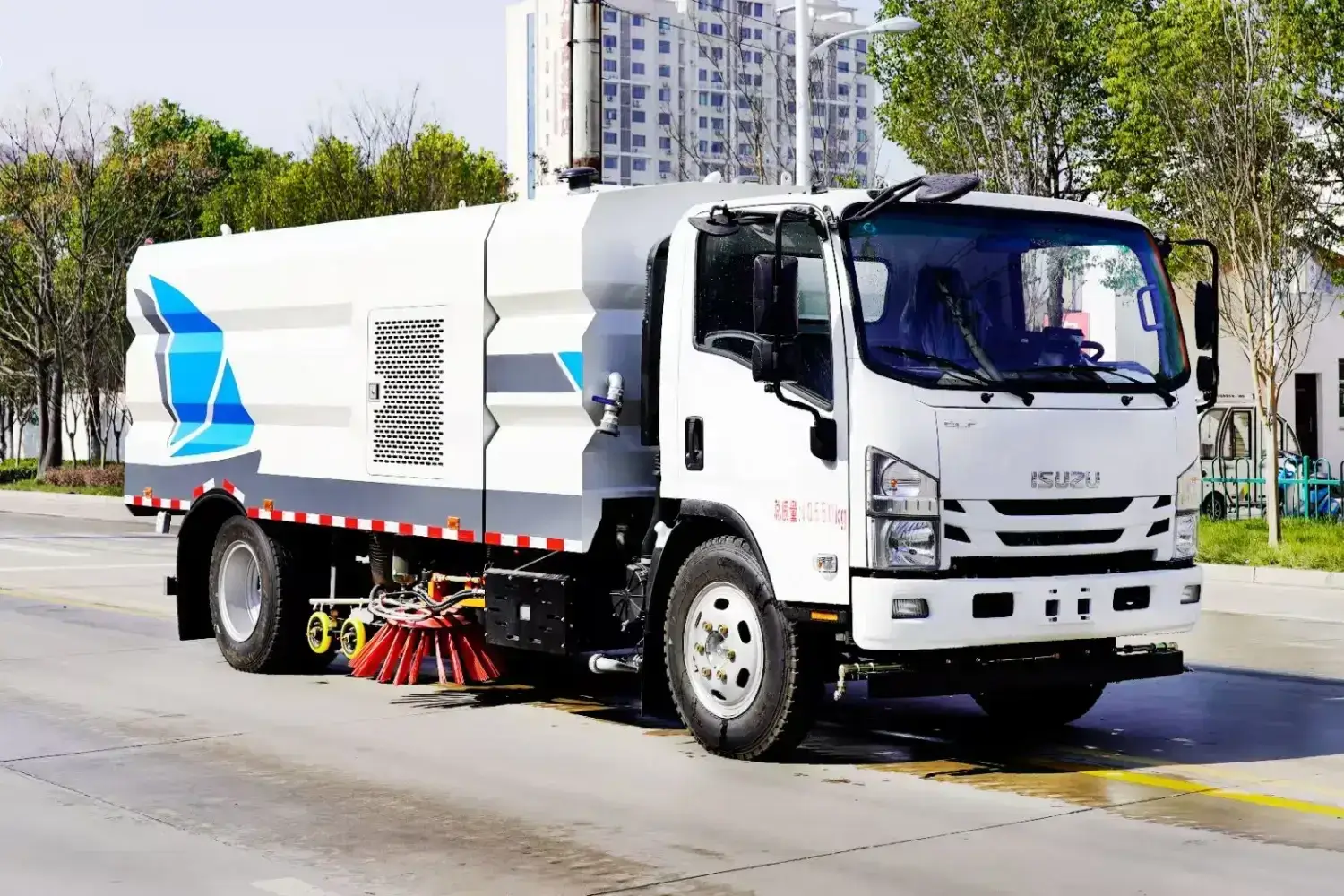

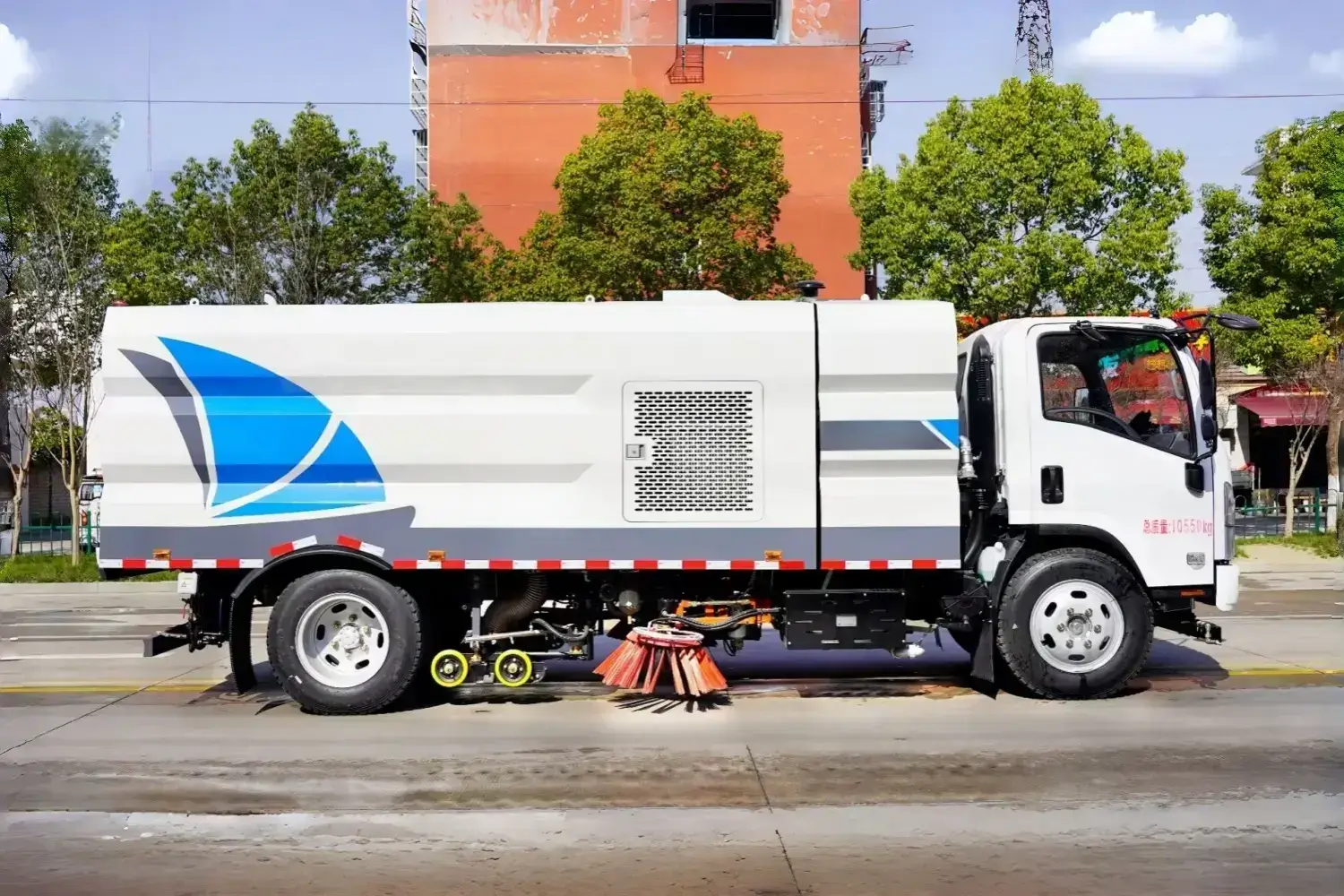

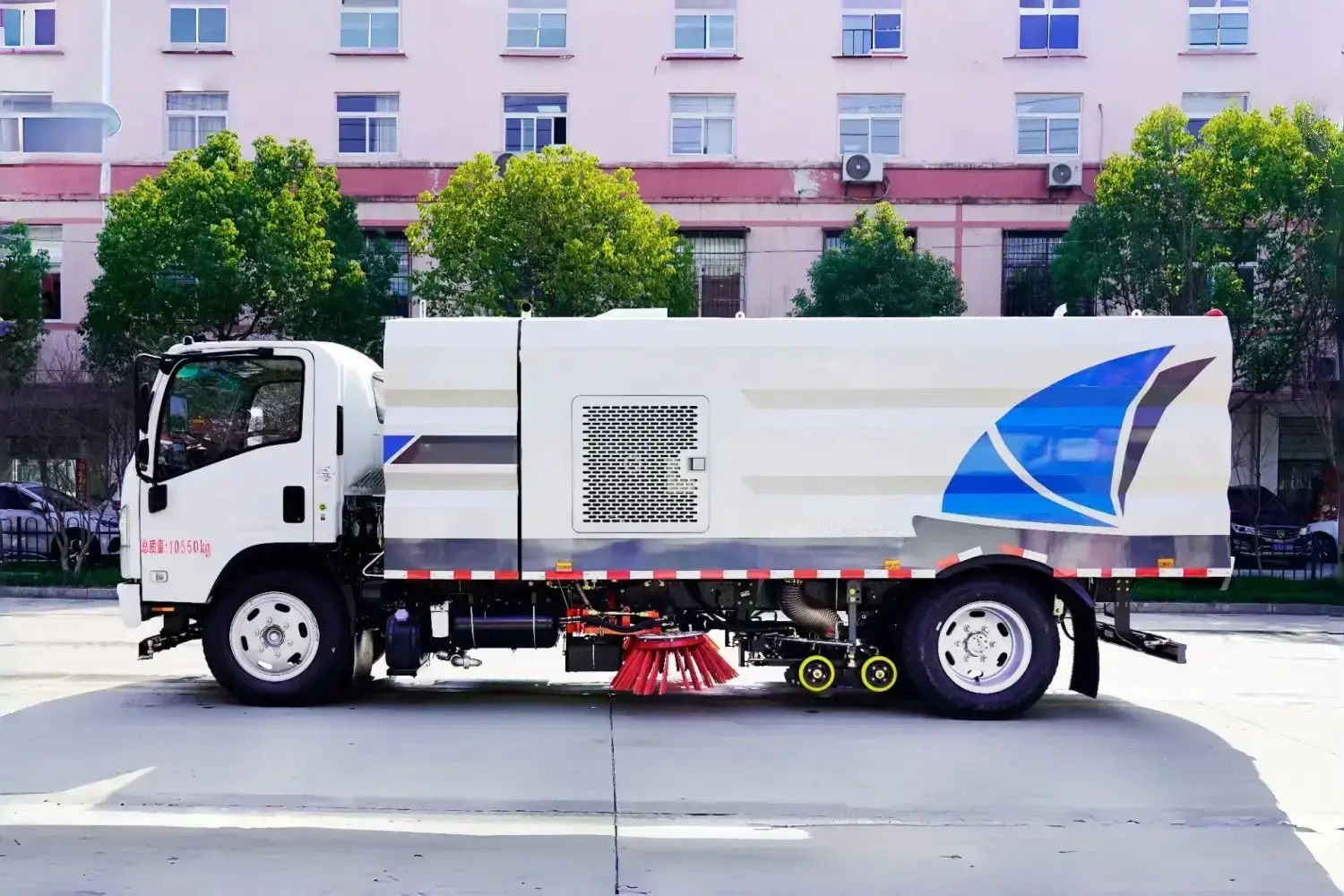

ISUZY 12 Cubic Meter Street Sweeper Sruck - Image 1

ISUZY 12 Cubic Meter Street Sweeper Sruck - Image 2

ISUZY 12 Cubic Meter Street Sweeper Sruck

ISUZY 12 Cubic Meter Street Sweeper Sruck - Image 3

ISUZY 12 Cubic Meter Street Sweeper Sruck - Image 4

ISUZY 12 Cubic Meter Street Sweeper Sruck - Image 5

ISUZY 12 Cubic Meter Street Sweeper Sruck - Image 6

ISUZY 12 Cubic Meter Street Sweeper Sruck - Image 7

ISUZY 12 Cubic Meter Street Sweeper Sruck

This product is a modern urban sanitation vehicle that integrates multiple functions, including efficient sweeping, high-pressure washing, and waste collection. With its superior power performance, sophisticated chassis configuration, and intelligent upper body system, it aims to provide professional and reliable solutions for urban road cleaning and environmental maintenance.

Conatct Us

Categories: Sanitation vehicle, Street washer-sweeper truck

Description
Reviews (0)

Vehicle Dimensions: 7210*2350*2700 mm
Gross Vehicle Weight: 10550 kg, Curb Weight: 7660 kg
Chassis Configuration: Isuzu 4HK1-TCG61 engine, Euro VI emission standard, 190 horsepower, Isuzu MLD six-speed transmission, Wheelbase: 4475 mm, Air conditioning (heating and cooling), Power steering, Central locking and power windows, 4-ton front axle, 7-ton rear axle, ABS, Air brake, Tilting cab, Standard 235/75R17.5 tires (825 steel radial tires optional).
Superstructure Configuration: Auxiliary engine, blower, high-pressure water pump, 6 cubic meter clean water tank, 6 cubic meter waste bin, left and right side brushes, wide suction nozzle with spray bar, low-pressure flushing system, sweeping disc dust suppression system, hydraulic system, dedicated device electronic control system and subframe, etc. The auxiliary engine is a Cummins 140 horsepower engine, with 2 centrally mounted sweeping discs, hydraulic motor, GTM40 high-pressure water pump, high-pressure curb cleaning nozzles, universal front corner spray, counter-flushing, rear spray, waste bin self-cleaning, stainless steel high-pressure piping, CAN bus control, rear LED arrow lights, 15-meter high-pressure car wash reel, waste bin and water tank with overflow and low water level alarm devices, and indoor monitor for reversing and sweeping status!

Reviews

There are no reviews yet.

Be the first to review “ISUZY 12 Cubic Meter Street Sweeper Sruck”
